Nylon Flat Board Supports for Circuit Boards - .020-.039 Chassis Hole

Name: Nylon Flat Board Supports for Circuit Boards - .020-.039 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-567623
Price: 19.99 USD
Availability: OutOfStock

SKU:01C-567623

Securely mount circuit boards with Nylon supports for .020-.039 chassis thickness. Easy install, RoHS compliant, durable material.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

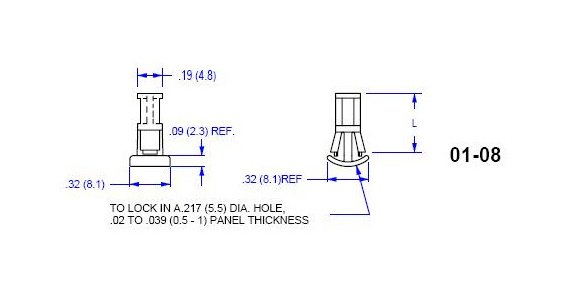

The 08 Series Flat Board Support x .217 Chassis Hole is a top-tier solution for securely mounting circuit boards with a chassis thickness range of .020-.039 inches. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), these supports offer easy installation from the chassis underside, ensuring a secure fit while allowing for easy release. With minimal protrusion under the chassis, they provide a neat and efficient setup. These supports are RoHS compliant and meet ASTM D4066, PA0113 standards, offering a temperature range of -40 to 185F (-40 to 85C). Ideal for both consumer and institutional applications, these supports guarantee reliability and longevity in various environments.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.394 (10.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2

Nylon Flat Board Supports for Circuit Boards - .020-.039 Chassis Hole
