Nylon Flat Circuit Board Support for .217 Chassis Hole

Name: Nylon Flat Circuit Board Support for .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-9f6d0a
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-9f6d0a

Secure PCBs with precision using our Nylon Flat Board Support for .217 Chassis Hole. Compliant with UL94V-2 and RoHS, ideal for diverse applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

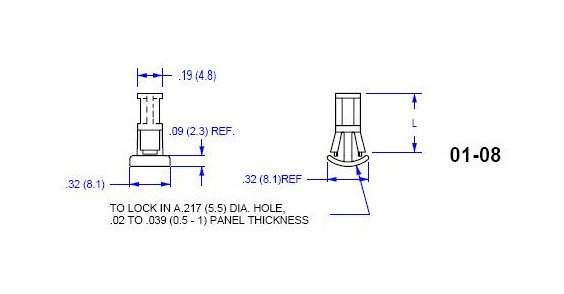

The 08 Series Flat Board Support x .217 Chassis Hole is a reliable solution for securing PCBs in a range of chassis thicknesses from .020 to .039 inches. Constructed from Nylon 66 UL94V-2 material, this support post ensures easy installation and secure locking, with minimal protrusion. Compliant with UL standards and RoHS regulations, this support offers a temperature range of -40 to 185F. Ideal for various industries requiring precise PCB mounting while meeting stringent safety standards.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.197 (5.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
