Nylon Male Threaded Support Post for Circuit Board Mounting

Name: Nylon Male Threaded Support Post for Circuit Board Mounting
Brand: All Electronics Hardware
SKU: 01C-c2b00f
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-c2b00f

Nylon Male Threaded Support Post for Circuit Board Mounting. Durable, RoHS compliant, and UL listed. Temperature range: -40 to 185F.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

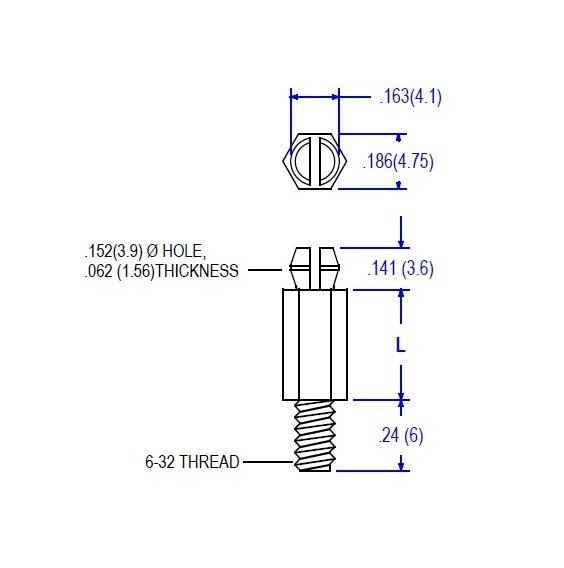

The 23 Series: .156 Board Hole x 6-32 Thd. Chassis Side is a male threaded support post designed for circuit board mounting applications. Made from Nylon 66 UL94V-2 material, this support post ensures durability and reliability. With a mounting hole diameter of .156 inches and a board thickness of .062 inches, it offers a secure fit for circuit boards. This product is RoHS compliant, ASTM D 4066 and PA111 certified, and UL listed. It operates within a temperature range of -40 to 185F, making it suitable for various environments.

Product Specifications

Specifications Board Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

.156 (4.0) inches (mm)
