Nylon Male Threaded Support Post for Circuit Board Mounting
Nylon Male Threaded Support Post for Circuit Board Mounting
SKU:01C-20d47b
Durable Nylon Male Threaded Support Post for Circuit Board Mounting, ASTM & RoHS Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Male Threaded Support Post for Circuit Board Mounting
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Male Threaded Support Post for Circuit Board Mounting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

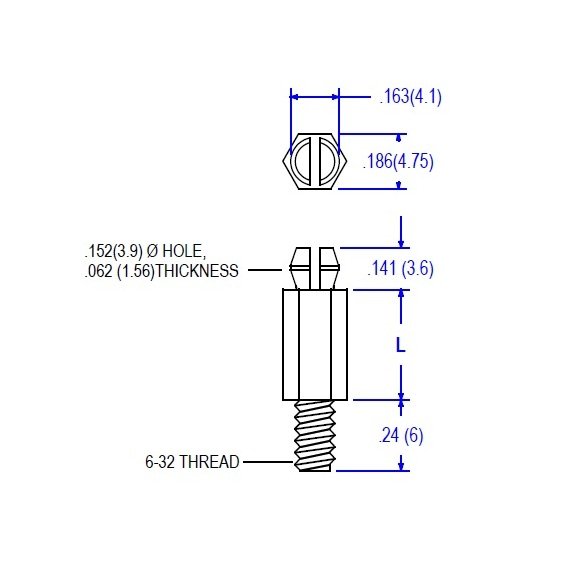

The 23 Series: .156 Board Hole x 6-32 Thd. Chassis Side is a resilient and reliable circuit board support component designed to securely mount boards in various applications. Made of UL94V-2 Nylon 66 material, this male threaded support post features a 6-32 thread suitable for compatibility with AEH Hex Nuts. With mounting hole diameter of .156 inches and board thickness of .062 inches, this support post is ASTM and RoHS compliant for enhanced safety and quality assurance. It offers a color option of Natural and can withstand temperatures ranging from -40 to 185F. Each pack contains 1000 units, ready for dependable circuit board installations.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Dim L
.125 (3.2) inches (mm)
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
.156 (4.0) inches (mm)
