Nylon Metric Dual Locking Support Post - 4mm Board Hole x 4mm Chassis Hole
Nylon Metric Dual Locking Support Post - 4mm Board Hole x 4mm Chassis Hole
SKU:01C-dba56e
Secure and durable Nylon Metric Dual Locking Support Post for circuit board applications. RoHS compliant and temperature resistant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Metric Dual Locking Support Post - 4mm Board Hole x 4mm Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Metric Dual Locking Support Post - 4mm Board Hole x 4mm Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Metric Dual Locking Support Post from the 27 Series offers a secure solution designed for circuit board supports. With 4mm Mounting Holes at both ends, this post ensures stability and reliability. Made from Nylon 66 (UL94V-2), this post is RoHS compliant and features a temperature range of -40 to 185 F. The dual locking mechanism provides enhanced support and durability for your circuit board applications.

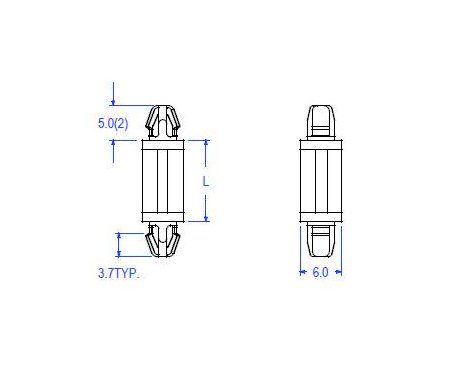

Product Specifications
Specifications Color
Natural
Specifications Dim L
10.0 ± .38 mm
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
4.0 mm
Specifications Pt Panel Thickness
1.6 mm
Specifications Remarks Panel Thickness
Nominal Thickness, Panel thickness is for both ends.
