Nylon PCB Support: .062 Thick Board x .062 Thick Chassis
Nylon PCB Support: .062 Thick Board x .062 Thick Chassis
SKU:01C-8bbbf0
Durable Nylon PCB Support for .062 Thick Boards & Chassis, Snap Fit Installation, Pack of 500
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon PCB Support: .062 Thick Board x .062 Thick Chassis
$29.99
Quantity: 1
Claim Your Seller Account
Nylon PCB Support: .062 Thick Board x .062 Thick Chassis
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

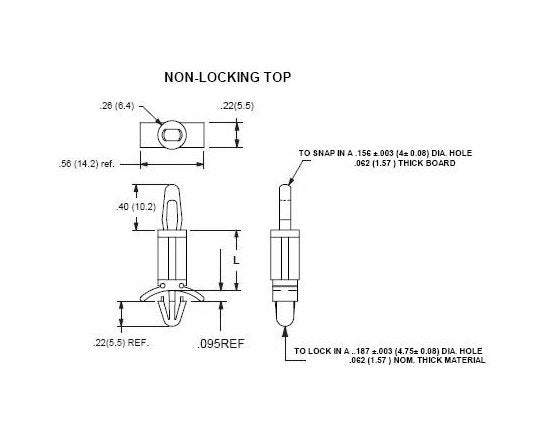

The 13A Series Nylon PCB Support is designed for .062 thick PCBs and chassis, providing sturdy support for electronic components. Made of Nylon 66 UL94V-2 material, it offers durability and heat resistance, with a temperature range of -40 to 185F (-40 to 85C). The Snap Fit feature ensures easy installation into PCBs, while the non-locking top securely locks into chassis, enhancing stability. This pack of 500 supports is ideal for circuit board applications requiring reliable and compliant mounting solutions.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
.375 (9.5) inches (mm)
