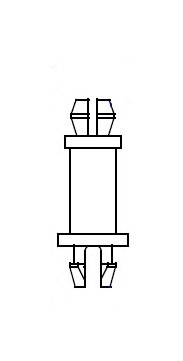

Nylon PCB Support: .157 Board Hole x .157 Chassis Side
Nylon PCB Support: .157 Board Hole x .157 Chassis Side
SKU:01C-3a62fa
Durable Nylon PCB Support for secure circuit board installations, RoHS compliant, ASTM certified
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon PCB Support: .157 Board Hole x .157 Chassis Side
$24.99
Quantity: 1
Claim Your Seller Account
Nylon PCB Support: .157 Board Hole x .157 Chassis Side
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

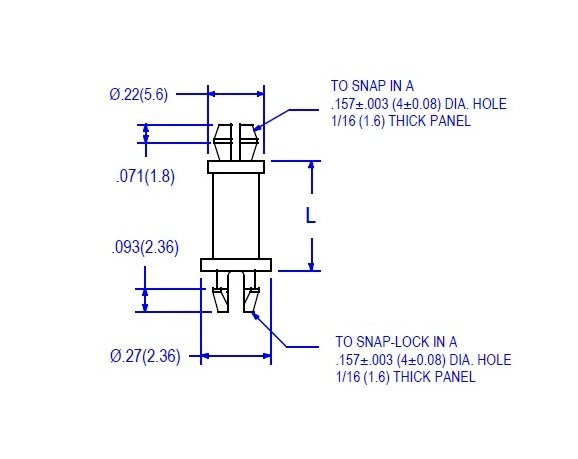

The Nylon PCB Support from the 72 Series features a .157 snap fit for PCBs and a .157 lock fit for chassis ends. Made from Nylon 66 UL94V-2 material, this support is resilient and durable. It comes in a natural color and can withstand temperatures ranging from -40 to 185F (-40 to 85C), meeting RoHS compliance. With ASTM D4066 and PA111 certifications, this support ensures stability and longevity in circuit board installations.
Product Specifications
Specifications Dim L
.375 (9.5) inches (mm)
