Nylon PCB Support - .157 Board Hole x .217 Chassis Hole, UL94V-2
Nylon PCB Support - .157 Board Hole x .217 Chassis Hole, UL94V-2
SKU:01C-ca8556
Secure and easy-to-install Nylon PCB Support for circuit boards, RoHS compliant, temperature-resistant, pack of 500.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nylon PCB Support - .157 Board Hole x .217 Chassis Hole, UL94V-2
$49.99
Quantity: 1
Claim Your Seller Account
Nylon PCB Support - .157 Board Hole x .217 Chassis Hole, UL94V-2
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

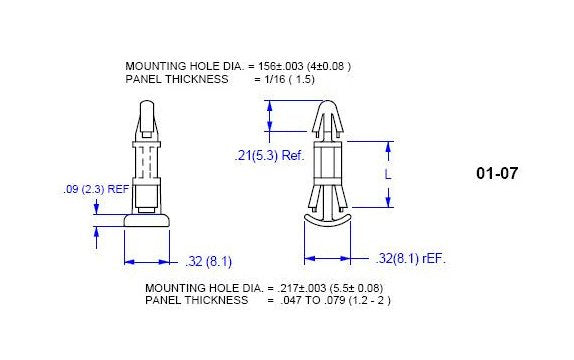

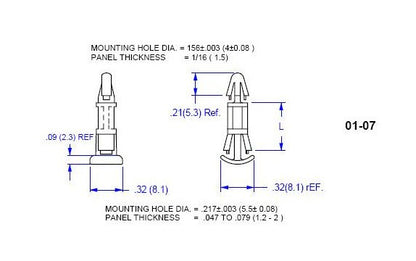

Enhance circuit board stability with the 07 Series Nylon PCB Support. Designed for chassis thickness ranging from .047 to .079 inches, this support installs easily and locks securely. Made from Nylon 66 UL94V-2 material, this support is RoHS compliant and can withstand temperatures from -40 to 185F. The reverse design ensures minimal board protrusion while offering easy releasability by hand. Each pack contains 500 supports in black color, suitable for various applications.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L 015
.630 (16.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-2
