Nylon PCB Support Spacer - Flat Board, Teardrop Head, .100 Chassis Hole

Name: Nylon PCB Support Spacer - Flat Board, Teardrop Head, .100 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-5de961
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-5de961

Upgrade circuit board assembly with the durable Nylon PCB Support Spacer, teardrop head, .100 hole, RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

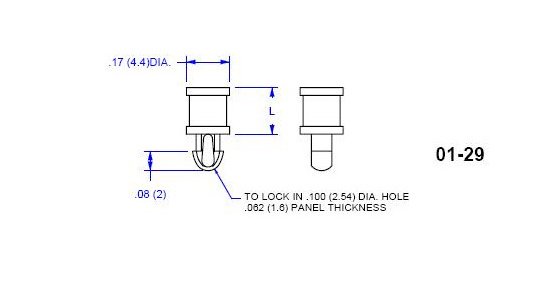

Enhance your circuit board assembly with the 29 Series: Flat Board Support x .100 Chassis Hole. This push spacer, also known as a PCB Support, features a teardrop head designed for easy installation in .100-inch diameter holes. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this spacer ensures durability and heat resistance, with a RoHS compliant design. The panel thickness of .064 inches accommodates various circuit board sizes, while the temperature range of -40 to 185F (-40 to 85C) guarantees performance in diverse environments. ASTM D 4066 and PA111 compliant, this spacer pack of 1000 units is a reliable choice for your electronic projects.

Product Specifications

Specifications Dim L

.438 (11.1) inches (mm)

Specifications Hole Diameter

.100 (2.54) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.064 (1.63) inches (mm)

Nylon PCB Support Spacer - Flat Board, Teardrop Head, .100 Chassis Hole
