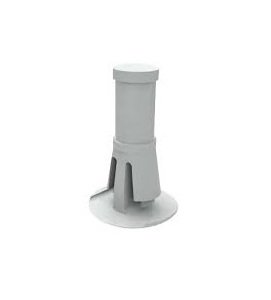

Nylon PCB Support Spacer with .187 Chassis Hole
Nylon PCB Support Spacer with .187 Chassis Hole
SKU:01C-ace810
Secure your PCBs with the durable and RoHS-compliant Nylon PCB Support Spacer with .187 Chassis Hole.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon PCB Support Spacer with .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon PCB Support Spacer with .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

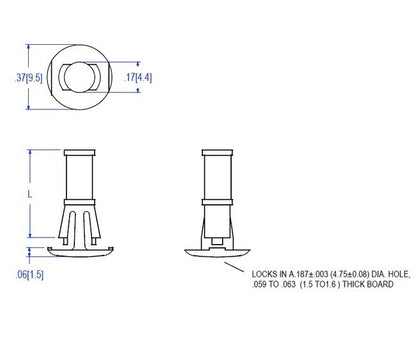

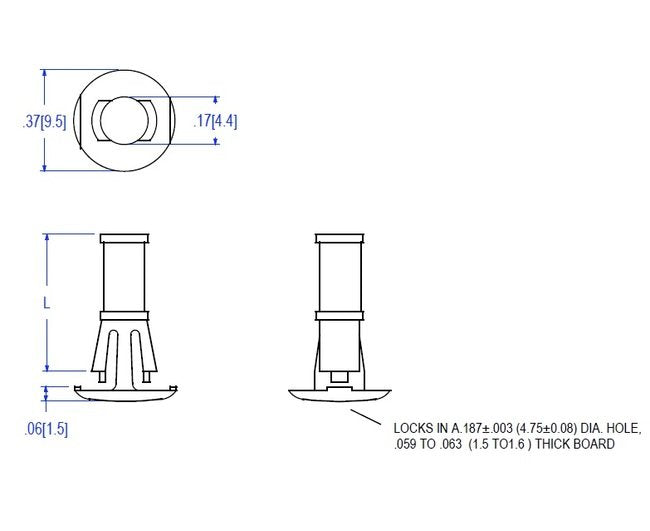

The 68 Series: .187 Chassis Hole Nylon PCB Support Spacer is designed for secure PCB mounting with a chassis hole diameter of .187 inches. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this spacer ensures reliability and safety in electronic applications. With a panel thickness of .062 inches and RoHS compliance, it offers durability and environmental friendliness. The product meets ASTM D4066 and PA0113 standards, providing industry-relevant quality assurance.
Product Specifications
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications L 015
.437 (11.1) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
