Nylon Pipe Adapter Bushing with Single Flange, 0.690" Bore, 3/8" Pipe Size
Nylon Pipe Adapter Bushing with Single Flange, 0.690" Bore, 3/8" Pipe Size
SKU:ROU-cccbd5
Facilitate secure pipe-to-collar fit with our Nylon Pipe Adapter Bushings. Expansion and vibration dampening in a single-flange design.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Nylon Pipe Adapter Bushing with Single Flange, 0.690" Bore, 3/8" Pipe Size
$12.99
Quantity: 1
Claim Your Seller Account
Nylon Pipe Adapter Bushing with Single Flange, 0.690" Bore, 3/8" Pipe Size
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

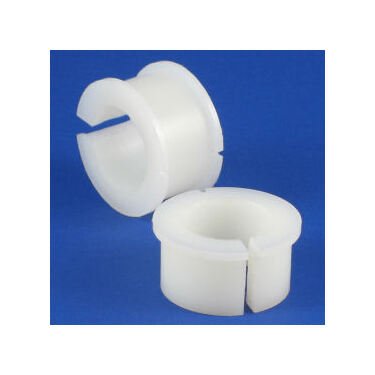

Our Nylon Pipe Adapter Bushings with Single Flange are designed to seamlessly fit inside standard shaft collars, enabling compatibility with standard pipes. These bushings not only facilitate easy mounting on surfaces or components but also provide expansion capability and vibration dampening. The Single Flange design allows for convenient insertion without collar disassembly, ensuring versatility and ease of use. Manufactured in the USA, this white Nylon Pipe Adapter Bushing complies with RoHS2 and REACH standards.
Product Specifications
Dimensional Attributes Bore Size
0.690 in
Dimensional Attributes Collar Width
1/2 in
Dimensional Attributes Flange Od
1.125 in
Dimensional Attributes Hub Diametercollar Bore Size
1.000 in
Dimensional Attributes Pipe Size
3/8 in
Dimensional Attributes Total Width
0.568 in
Specifications Approximate Weight
0.01 lb
Specifications Color
White
Specifications Country Of Origin
USA
Specifications Material
Nylon
Specifications Part Number
20P014
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Single Flange
Specifications Upc Code
662786026058
