Nylon Reverse PCB Support Kit - Ultra-Lock Series
Nylon Reverse PCB Support Kit - Ultra-Lock Series
SKU:01C-c7e5cd
07 Series Nylon Reverse PCB Support Kit for secure and reliable circuit board mounting. RoHS compliant with UL94V-2 Nylon material.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Reverse PCB Support Kit - Ultra-Lock Series
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Reverse PCB Support Kit - Ultra-Lock Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

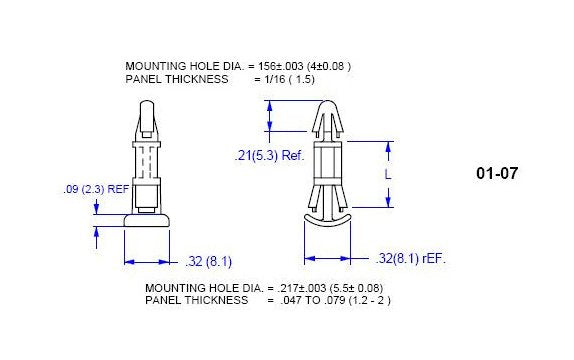

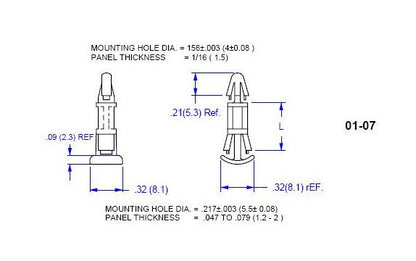

The 07 Series Nylon Reverse PCB Support Kit features a .157 Board Hole and .217 Chassis Hole, designed to securely support circuit boards within a chassis thickness range of .047-.079 inches. Easy to install from the chassis underside, it ensures minimal board protrusion while offering a secure yet releasable lock mechanism. Made of UL94V-2 Nylon 66 (UL94V-0 available), this kit is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F, it guarantees durability and reliability in various operating conditions, making it an ideal choice for institutional and government procurement needs.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L 015
.197 (5.0) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-0
