Nylon Support Post - 21 Series: .187 Board Hole x .187 Chassis Hole

Name: Nylon Support Post - 21 Series: .187 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-86349b
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-86349b

Durable Nylon Support Post for circuit board applications, featuring .187 board hole x .187 chassis hole. RoHS compliant, easy to install and remove.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

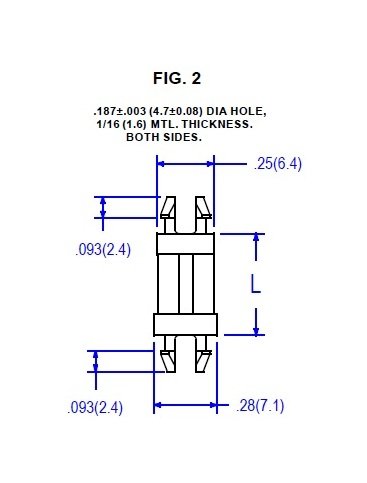

The Nylon Support Post from the 21 Series features a .187 inch board hole and .187 inch chassis hole, providing easy installation by hand. Its secure locking mechanism can be effortlessly removed by pinching the prong tips. Made of durable Nylon 66 UL94V-2 material, this support post is RoHS compliant and has a temperature range of -40 to 185F (-40 to 85C). Ideal for circuit board supports, it comes in a natural color and is available in a pack of 500. Optional UL94V-0 material available upon request.

Product Specifications

Specifications Boardchassis Hole Dia

.187 (4.8) inches (mm)

Specifications Dim L

.187 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
