Nylon Support Post for Circuit Board (.156 Board Hole x .156 Chassis Hole)

Name: Nylon Support Post for Circuit Board (.156 Board Hole x .156 Chassis Hole)
Brand: All Electronics Hardware
SKU: 01C-4bd2c1
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-4bd2c1

Secure circuit boards effortlessly with Nylon Support Post for .156 holes. RoHS compliant, ASTM D 4066 certified. Ideal for panel thickness of .063 inches.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Support Post is a versatile solution for securing circuit boards with a .156 board hole and a .156 chassis hole. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support post offers easy hand installation and secure locking mechanism. It can withstand temperatures ranging from -40 to 185F (-40 to 85C). Each pack includes 500 pieces in natural color, ideal for various applications requiring panel thickness of .063 inches. Ensure compliant, reliable support with this RoHS compliant and ASTM D 4066 certified product.

Product Specifications

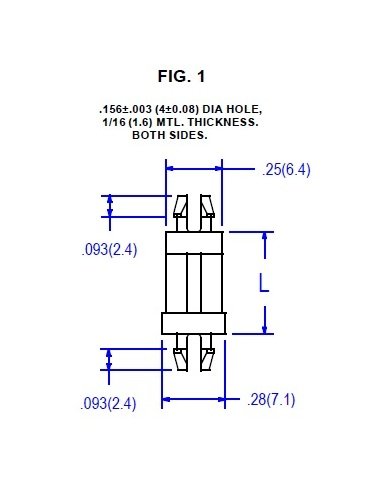

Specifications Boardchassis Hole Dia

.156 (4.0) inches (mm)

Specifications Dim L

.812 (20.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
