Nylon Support Post for Circuit Board - .187 Board Hole x .187 Chassis Hole - Pack of 500

Name: Nylon Support Post for Circuit Board - .187 Board Hole x .187 Chassis Hole - Pack of 500
Brand: All Electronics Hardware
SKU: 01C-5d7b22
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-5d7b22

Secure circuit boards effortlessly with Nylon Support Post for .187 Board Hole x .187 Chassis Hole. Meets ASTM & RoHS standards.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Support Post from the 21 Series is a crucial component for securing circuit boards in place. With a .187-inch board hole and chassis hole, this support post ensures a secure fit while allowing for easy installation and removal. Crafted from UL94V-2 Nylon 66 (also available in UL94V-0), this product meets ASTM D 4066 standards and is RoHS compliant. With a temperature range of -40 to 185F, this support post is reliable in various environments, making it an ideal choice for institutional and government procurement needs.

Product Specifications

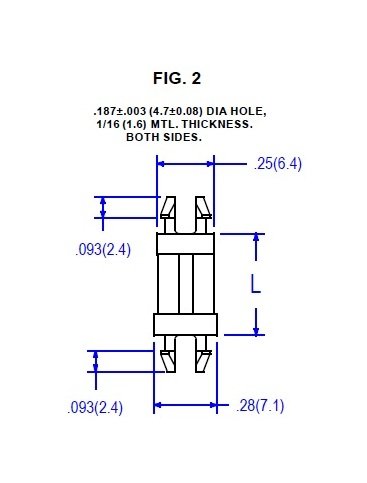

Specifications Boardchassis Hole Dia

.187 (4.8) inches (mm)

Specifications Dim L

1.06 (26.9) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
