Nylon Support Post for Circuit Boards and Chassis - .187" Hole Size
Nylon Support Post for Circuit Boards and Chassis - .187" Hole Size
SKU:01C-6e8f79
Secure and versatile Nylon Support Post for circuit boards and chassis with .187" hole size. Easy installation, RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Support Post for Circuit Boards and Chassis - .187" Hole Size
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Support Post for Circuit Boards and Chassis - .187" Hole Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

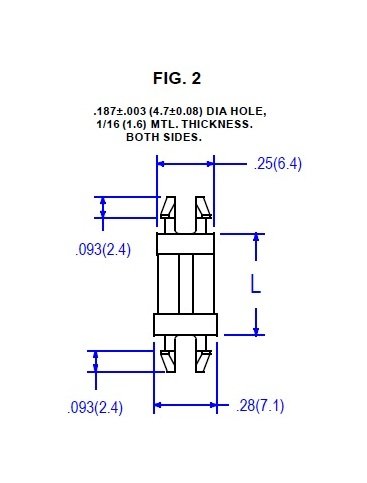

The 21 Series Support Post is designed for easy manual installation, providing secure locking with removable prong tips. Made from Nylon 66 UL94V-2 material, this support post meets RoHS compliance and has a temperature range of -40 to 185F. It features a .187" board hole and .187" chassis hole, suitable for panel thickness of .063". Ideal for circuit board supports, it ensures stability and durability for your assemblies.
Product Specifications
Specifications Boardchassis Hole Dia
.187 (4.8) inches (mm)
Specifications Dim L
.750 (19.1) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
