Nylon Teardrop PCB Support Spacer with .100 Chassis Hole - 29 Series

Name: Nylon Teardrop PCB Support Spacer with .100 Chassis Hole - 29 Series
Brand: All Electronics Hardware
SKU: 01C-2baf3c
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-2baf3c

Durable Nylon Teardrop PCB Support Spacer with .100-inch hole. RoHS compliant, ASTM D 4066, PA111, for reliable circuit board support.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

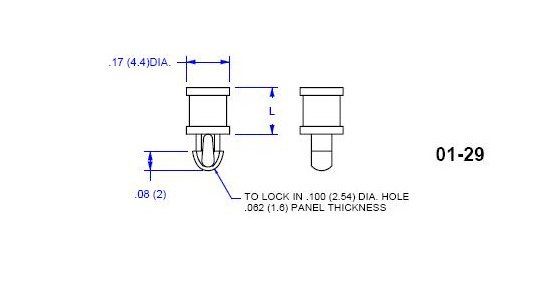

The Nylon Teardrop PCB Support Spacer from the 29 Series offers durable support with a teardrop head and .100-inch hole diameter, ideal for circuit board installations. Made of Nylon 66 UL94V-2 material, it ensures reliable performance in a wide temperature range (-40 to 185F). Each pack contains 1000 spacers, providing convenient packaging for institutional procurement needs. Add 'X' to the part number for UL94V-0 material option. Compliant with RoHS standards and ASTM D 4066, PA111, this spacer meets stringent quality requirements for government and institutional projects.

Product Specifications

Specifications Dim L

.312 (7.9) inches (mm)

Specifications Hole Diameter

.100 (2.54) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.064 (1.63) inches (mm)

Nylon Teardrop PCB Support Spacer with .100 Chassis Hole - 29 Series
