Nylon Threaded Circuit Board Support

Name: Nylon Threaded Circuit Board Support
Brand: All Electronics Hardware
SKU: 01C-365ca7
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-365ca7

Secure your circuit boards with precision using our nylon threaded support. RoHS compliant and durable for various temperatures.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

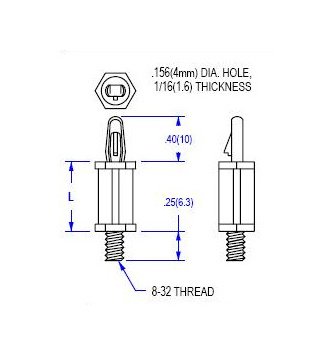

The 14 Series: .156 Board Hole x 8-32 Thd. Chassis Side is a high-quality threaded circuit board support essential for secure mounting. Featuring a board hole diameter of .156 inches and panel thickness of .063 inches, this support ensures stability and durability. Made of Nylon 66 UL94V-2 material, with UL File No. E41938 and ASTM D 4066, PA111 compliance, it is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C). For enhanced safety, UL94V-0 material is available by adding an 'X' to the end of the part number.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)
