Nylon Threaded Circuit Board Support - .156 Board Hole x 8-32 Thd. Chassis Side

Name: Nylon Threaded Circuit Board Support - .156 Board Hole x 8-32 Thd. Chassis Side
Brand: All Electronics Hardware
SKU: 01C-41fa5a
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-41fa5a

Enhance circuit board stability with our Nylon Threaded Support - .156 Hole, 8-32 Thd. Chassis. RoHS compliant, durable Nylon 66 material.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

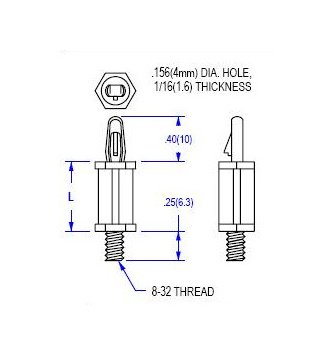

Upgrade your circuit board support with our durable Nylon Threaded Circuit Board Support from the 14 Series. Featuring a .156-inch board hole diameter and 8-32 threaded chassis side, this support ensures secure fastening with an 8-32 hex nut (AEH Pt# 12-00-832). Made of UL94V-2 Nylon 66 material (UL94V-0 available), it meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this support is built to withstand harsh environments while providing reliable stability for your circuit boards.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Dim L

.375 (9.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)
