The OAL Classic 6-Inch Electric Heat Tunnel is a premium solution for precision shrink label and tamper evident band application. Designed for various industries including food, beverage, pharmaceutical, nutraceutical, health, beauty, and consumer goods, this tunnel boasts a rugged stainless steel construction, adjustable IR heater elements, and digital temperature control for optimal shrink control on a variety of films. With a tunnel width of 6 inches, maximum temperature of 400°F, and high-efficiency blowers, this tunnel ensures efficient and uniform heat distribution. Trust American Film & Machinery for reliable performance and cost-effective shrink sleeve solutions.
Product Specifications
Constructed For Your Environment Constructed For Your Environmen

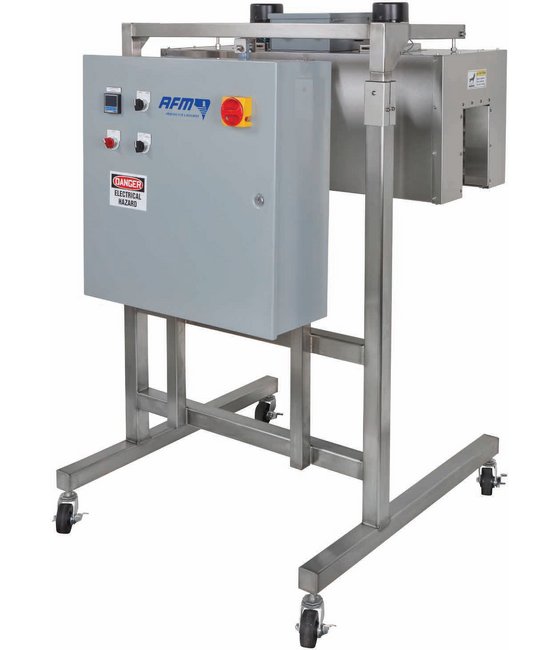

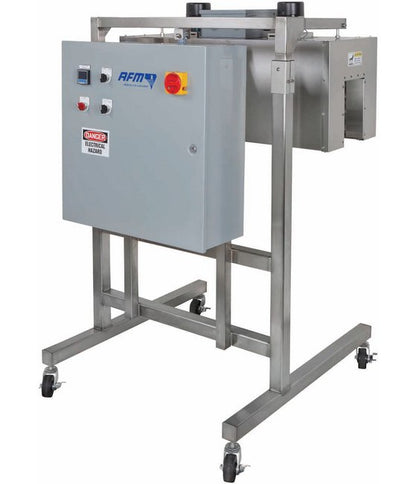

Designed to work as an integral part of your day-to-day packaging operations, the OAL Classic tunnel is constructed from rugged stainless steel and supplied with an electrically adjustable stainless steel stand. Motorized height control makes installation easy and can be completed in minutes using standard tools to have you up and running, saving your company money and increasing your ROI. Due to its versatility and reliability, the OAL Classic Electric Heat Tunnel is also ideal for the changing needs of contract packagers.
Designed To Perform Designed To Perform

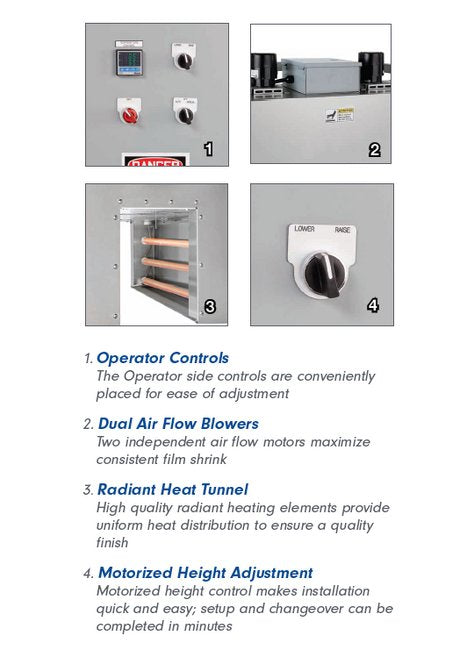

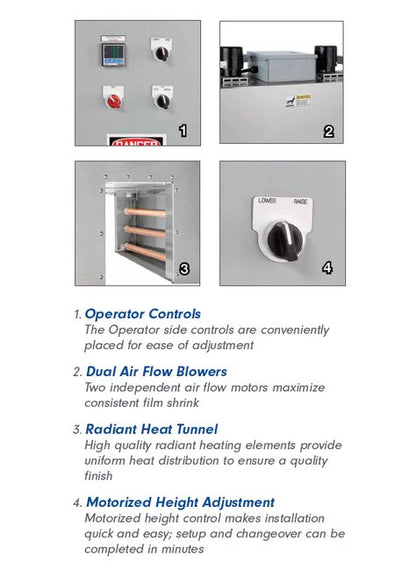

The OAL Classic utilizes a 940 mm x 150 mm x 200 mm tunnel opening to accommodate a number of shrink sleeve applications. The tunnel has a maximum temperature of 400°F and features high quality IR radiant heating elements for efficient uniform heat distribution. Changing containers or labels create no problems, air controls and adjustments are done from the operator side of the tunnel, making adjustments safe, quick and easy.
Efficient Operation Efficient Operation
The OAL Classic Electric Heat Shrink Tunnel is a versatile and accurate recirculating heat tunnel with high efficiency blowers, adjustable heater element locations, and digital time proportional temperature control with a solid state contactor. The adjustable IR heater element locations allow the tunnel to be set up for a wide variety of applications. The OAL Classic provides optimal shrink control and high quality finish on a number of films including PVC, PETG, OPS, and PLA.
Technical Specs Film Thickness
0.035 to 0.07 mm
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Machine Height
58 in | 1473 mm
Technical Specs Machine Length
49.3 in | 1250 mm
Technical Specs Machine Width
31.5 in | 800 mm
Technical Specs Motor Type
Alternating Current (AC)
Technical Specs Number Of Motors
2
Technical Specs Phase
3
Technical Specs Power Rating
1/2 hp
Technical Specs Temperature
400 ºF
Technical Specs Tunnel Height
9 in | 230 mm
Technical Specs Tunnel Length
49.3 in | 1250 mm
Technical Specs Tunnel Width
6 in | 152 mm
Technical Specs Voltage
240 V | 480 V
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
