Octagon Milling Blank with Countersink Hole, Thk. 0.198/0.206 in
Octagon Milling Blank with Countersink Hole, Thk. 0.198/0.206 in
SKU:MIL-b0b523
Enhance precision in milling with our Octagon Milling Blank. Thickness: 0.198/0.206 in, customizable grade availability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Octagon Milling Blank with Countersink Hole, Thk. 0.198/0.206 in
$29.99
Quantity: 1
Claim Your Seller Account
Octagon Milling Blank with Countersink Hole, Thk. 0.198/0.206 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your milling projects with precision using the Octagon Milling Blank. With a thickness range of 0.198 to 0.206 inches, an inscribed circle of 0.639 to 0.645 inches, and a 60-degree angle, this blank offers exceptional accuracy. The countersink hole, measuring 0.211 to 0.217 inches, ensures efficient installation processes. Grade availability is customizable on request, catering to diverse project requirements while meeting stringent industry standards for quality and performance.

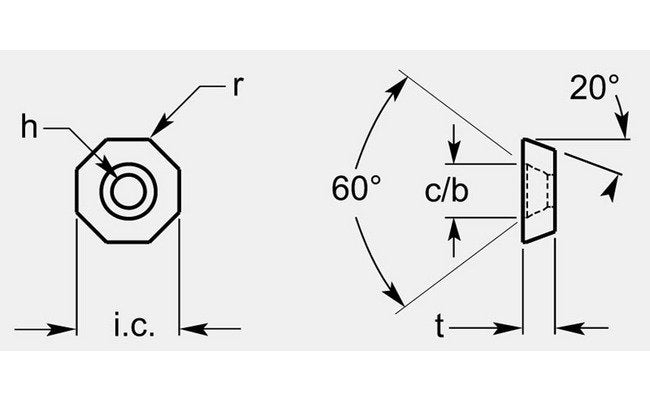

Product Specifications
Dimensional Specification Angle A
60 º
Dimensional Specification Cb
0.307 / 0.313 in
Dimensional Specification Hole
0.211 / 0.217 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Grade Availability Grade Availability
Available on Request
