Octagonal Milling Blank with Center Hole, 0.360-0.366 in Thickness
Octagonal Milling Blank with Center Hole, 0.360-0.366 in Thickness
SKU:MIL-7cf677
High-quality Octagonal Milling Blank with Center Hole, 0.360-0.366 in Thickness, customizable grades, exceptional durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Octagonal Milling Blank with Center Hole, 0.360-0.366 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Octagonal Milling Blank with Center Hole, 0.360-0.366 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

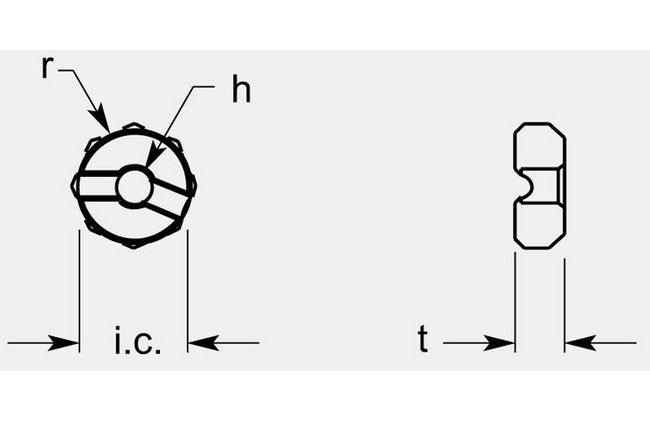

The Octagonal Milling Blank with Center Hole offers precision and durability for milling applications. With a thickness range of 0.360 to 0.366 inches and an inscribed circle diameter of 0.848 to 0.858 inches, this blank ensures consistent performance. The included hole of 0.245 to 0.255 inches adds versatility to machining tasks. Grade availability is customizable upon request, meeting various project requirements.
Product Specifications
Dimensional Specification Hole
0.245 / 0.255 in
Dimensional Specification Inscribed Circle Ic
0.848/0.858 in
Dimensional Specification Radius R
0.317 / 0.327 in
Dimensional Specification Thickness T
0.360 / 0.366 in
Grade Availability Grade Availability
Available on Request
