OCXO 10-100MHz Frequency Oven-Controlled Crystal Oscillator
OCXO 10-100MHz Frequency Oven-Controlled Crystal Oscillator
SKU:OCX-ce1915
High-performance OCXO for precision timing, ideal for radar, air traffic control, and communication systems.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
OCXO 10-100MHz Frequency Oven-Controlled Crystal Oscillator
$289.99
Quantity: 1
Claim Your Seller Account
OCXO 10-100MHz Frequency Oven-Controlled Crystal Oscillator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The OCXO 10-100MHz Frequency Oven-Controlled Crystal Oscillator from Greenray Industries is a high-performance SMT oscillator designed for precision timing applications. With a compact package and exceptional stability across temperature ranges, this OCXO is ideal for ground radar, air traffic control, and communication systems. It meets Stratum 3 compliance, making it perfect for test & measurement instrumentation.
Product Specifications
Applications Applications
Ground radarAir traffic control systemEmergency wireless communications transceiverClock reference for analyzers or synthesizersEthernet synchronizationCommunication systemGround station RF telemetry systemsMultiband terminalUpconverter
Electrical Characteristics Maximum Direct Current Dc Supply Volt
12.6 V | 15.7 V | 3.6 V | 5.25 V
Electrical Characteristics Maximum Frequency Versus Load For A 1
5 ppb
Electrical Characteristics Maximum Frequency Versus Voltage For
3 ppb
Electrical Characteristics Maximum Input Power Idle At 25 Degree
2 W
Electrical Characteristics Maximum Input Power Warm Up 5 Min
5 W
Electrical Characteristics Maximum Level 0 Direct Current Dc Vol
+0.2 V
Electrical Characteristics Maximum Nominal Frequency At Compleme
100 MHz
Electrical Characteristics Maximum Supply Current
25 mA
Electrical Characteristics Maximum Symmetry At Complementary Met
60 %
Electrical Characteristics Minimum Direct Current Dc Supply Volt
3.0 V | 4.75 V | 11.4 V | 14.3 V
Electrical Characteristics Minimum Level 1 Direct Current Dc Vol
-0.2 V
Electrical Characteristics Minimum Nominal Frequency At Compleme
10 MHz
Electrical Characteristics Minimum Symmetry At Complementary Met
40 %
Electrical Characteristics Note For Frequency Stability Please C
Other Stability Available
Electrical Characteristics Aging Per Day After 30 Days
2 ppb
Electrical Characteristics Direct Current Dc Supply Volt
12.0 V | 15.0 V | 3.3 V | 5.0 V
Electrical Characteristics Electronic Frequency Control
5 ppm
Electrical Characteristics Frequency Stability At 0 To 5
100 ppb
Electrical Characteristics Frequency Stability At 10 To
150 ppb
Electrical Characteristics Frequency Stability At 20 To
200 ppb
Electrical Characteristics Frequency Stability At 40 To
500 ppb
Electrical Characteristics Load At Complementary Metal O
15 pF
Electrical Characteristics Symmetry At Complementary Met
50 %
Electrical Characteristics Warm Up Time Within 50 Parts
5 min
Environmental And Mechanical Specifications Shock
StandardMIL-STD-202Method, Condition213, Cond CDescription1,500 g, 0.5 ms half-sine
Environmental And Mechanical Specifications Vibration
StandardMIL-STD-202Method, Condition204, Cond ADescription50 g, 20 to 2,000 Hz, swept sine
Features Features
Stratum 3 CompliantIdeal for Test & Measurement, Instrumentation application
Phase Noise Performance Phase Noise At 100 Megahertz Mhz
-160 dBc/Hz
Recommendation And General Information Marking
Line 1: Greenray logoLine 2: ModelLine 3: FrequencyLine 4: Serial Number + Data Code (YYWW)
Recommendation And General Information Operating Temperature
-40 to +70 ºC
Recommendation And General Information Package Finish
Stainless Steel and Nickel-plated Kovar
Recommendation And General Information Package Weight
8 g
Recommendation And General Information Shipping
Tray Pack

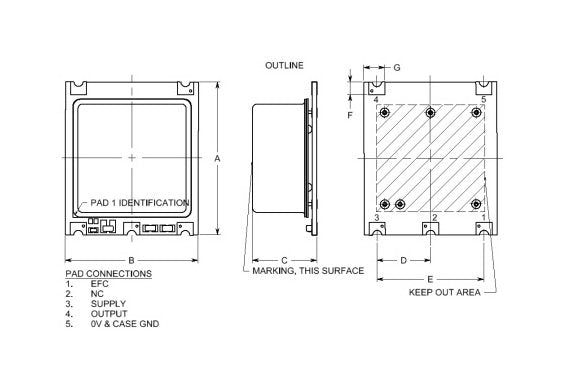

Specifications Sizes Dimensions Details Smt Package
25.4 x 22.1 mm
