Offset Cam Wing Knob Compression Latch - 68.3mm Grip Range

Name: Offset Cam Wing Knob Compression Latch - 68.3mm Grip Range
Brand: All Electronics Hardware
SKU: IND-03af0c
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-03af0c

Secure doors and flaps with ease using the Offset Cam Wing Knob Compression Latch. Reliable non-locking mechanism, durable materials, and 68.3mm grip range.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

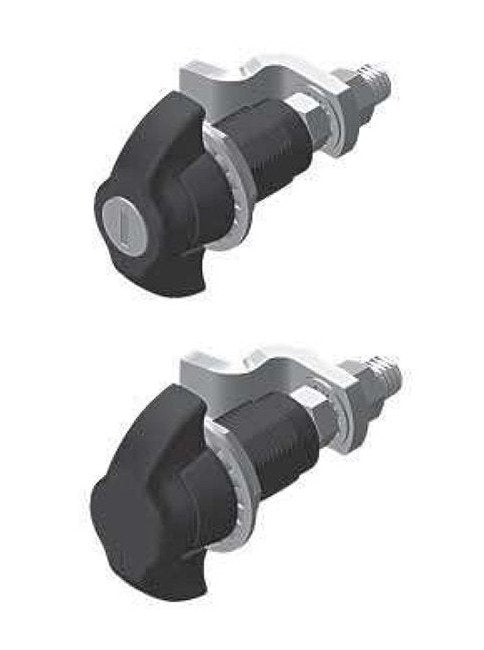

The Offset Cam Wing Knob Long Shaft Compression Latch ensures easy, secure, and compressive latching of doors and flaps. Featuring a durable housing and cylinder made of Die-Cast Zinc, a sturdy Mild Steel shaft, and a black powder-coated finish for enhanced durability. With a non-locking mechanism and an offset cam orientation, this latch offers a maximum grip range of 68.3mm, ideal for industrial applications requiring reliable locking solutions.

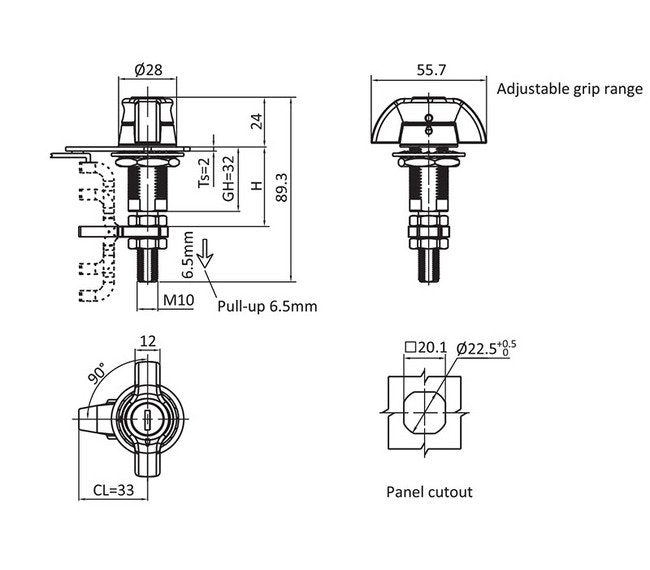

Product Specifications

Specifications Cam Orientation

Offset Cam

Specifications Locking Mechanism

Non-Locking

Specifications Material

Housing and Cylinder: Die-Cast Zinc | Shaft: Mild Steel

Specifications Maximum Grip Range

68.3 mm

Specifications Minimum Grip Range

52.6 mm

Specifications Surface Finish

Handle and Housing : Black Powder Coated | Shaft: Zinc Plated

Offset Cam Wing Knob Compression Latch - 68.3mm Grip Range
