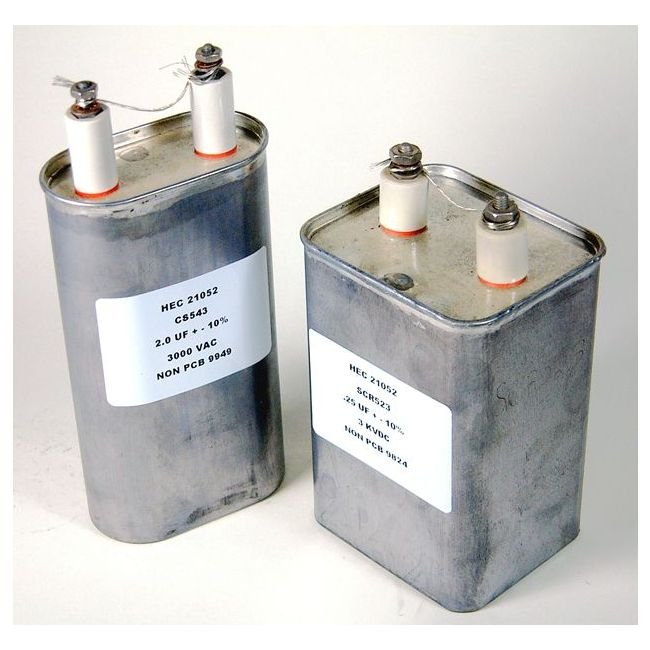

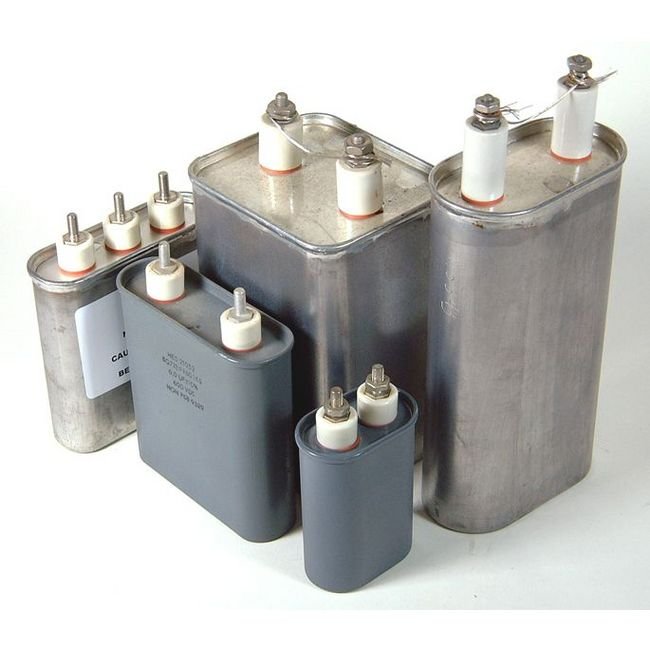

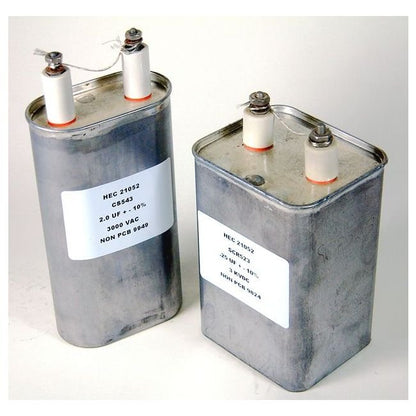

Oil-Filled Drawn Oval Can Capacitor - CC Series
Oil-Filled Drawn Oval Can Capacitor - CC Series
SKU:OIL-793bc0
High-voltage oil-filled capacitor for reliable performance. Capacitance range: 1-20 µF, Voltage: 2000 V DC. Durable construction, wide operating temperature range.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Oil-Filled Drawn Oval Can Capacitor - CC Series
$39.99
Quantity: 1
Claim Your Seller Account
Oil-Filled Drawn Oval Can Capacitor - CC Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with our Oil-Filled Drawn Oval Can Capacitor from the CC Series. This high-quality capacitor offers a capacitance range of 1 to 20 µF and a durable construction featuring drawn plated steel with epoxy paint. With a voltage rating of 2000 V DC, this capacitor ensures reliable operation in various applications. Benefit from excellent insulation resistance, wide operating temperature range, and compliance with industry standards for optimal performance and longevity.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
1 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

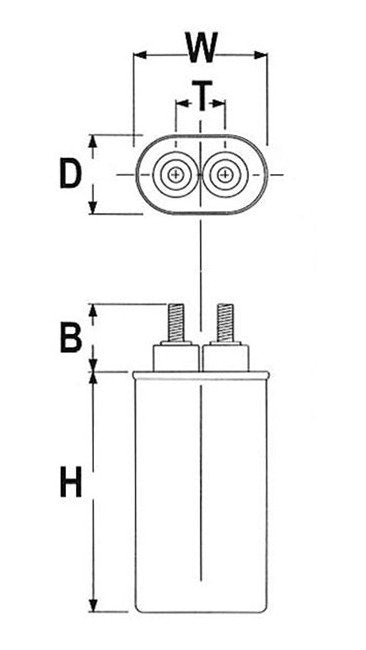

Specifications Dimension B
2 in
Specifications Dimension D
1.31 in
Specifications Dimension H
3.75 in
Specifications Dimension T
0.81 in
Specifications Dimension W
2.19 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
2000 V
