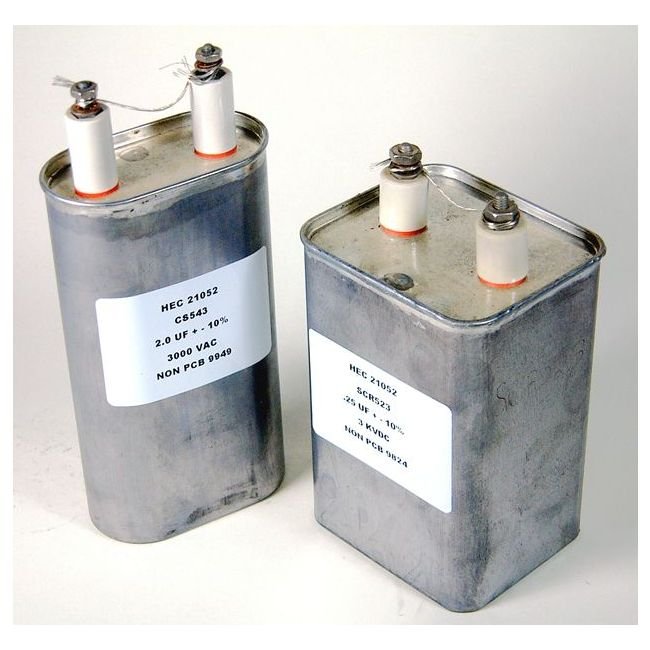

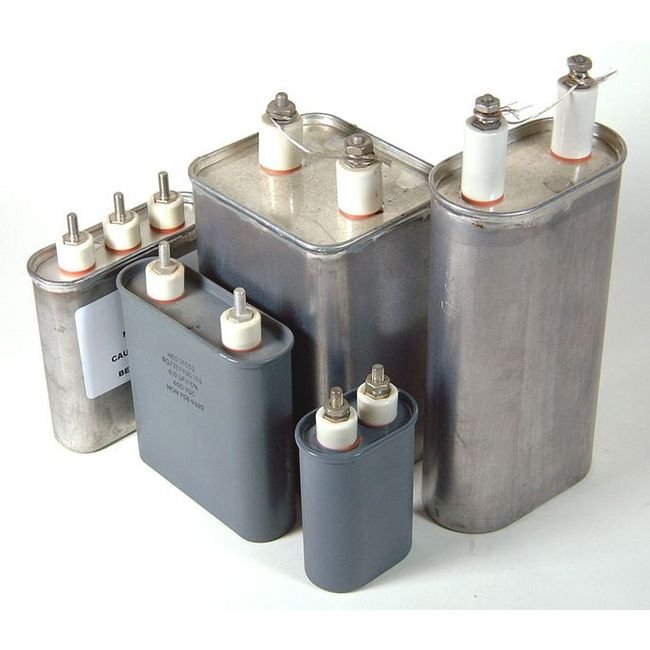

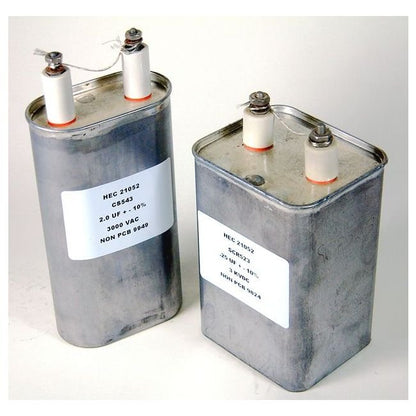

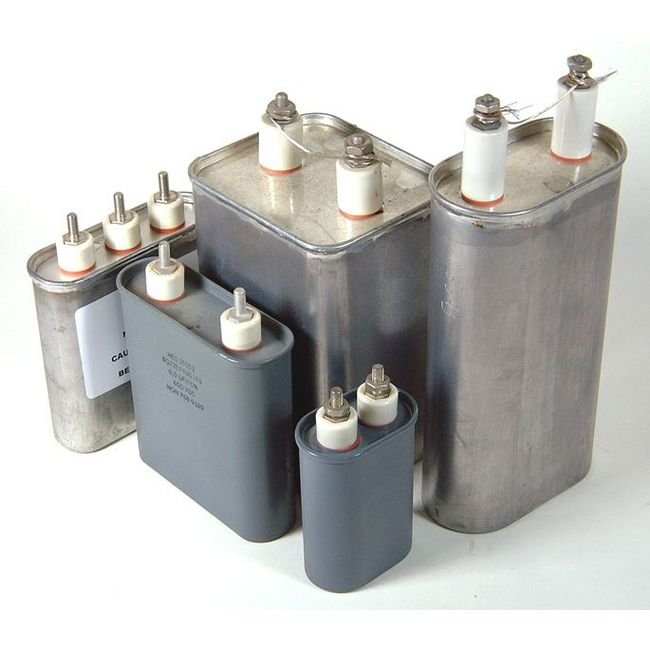

Upgrade your power systems with the CC Series Drawn Oval Can Oil-Filled Capacitor. With a capacitance range of 1 to 20 µF and a voltage rating of 2000 VDC, this capacitor ensures reliable DC filtering. Constructed with plated drawn steel cans and eco-friendly dielectric materials, this capacitor offers exceptional performance and durability. Operating seamlessly in temperatures from -40 to +90 ºC, it guarantees superior insulation resistance and efficient AC ripple voltage control. Compliant with Federal procurement standards, this capacitor is a trusted choice for government and institutional applications.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
2 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

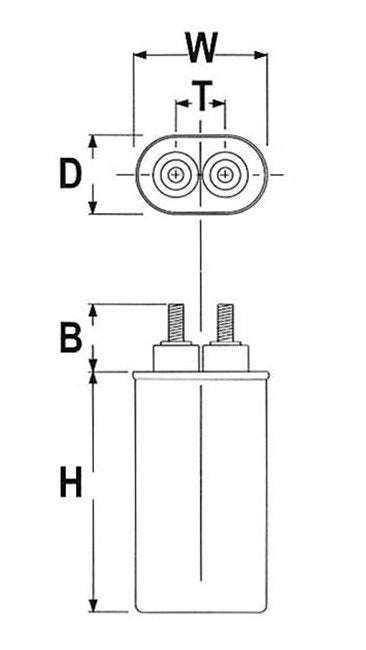

Specifications Dimension B
2 in
Specifications Dimension D
1.91 in
Specifications Dimension H
3.75 in
Specifications Dimension T
1.38 in
Specifications Dimension W
2.91 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
2000 V
