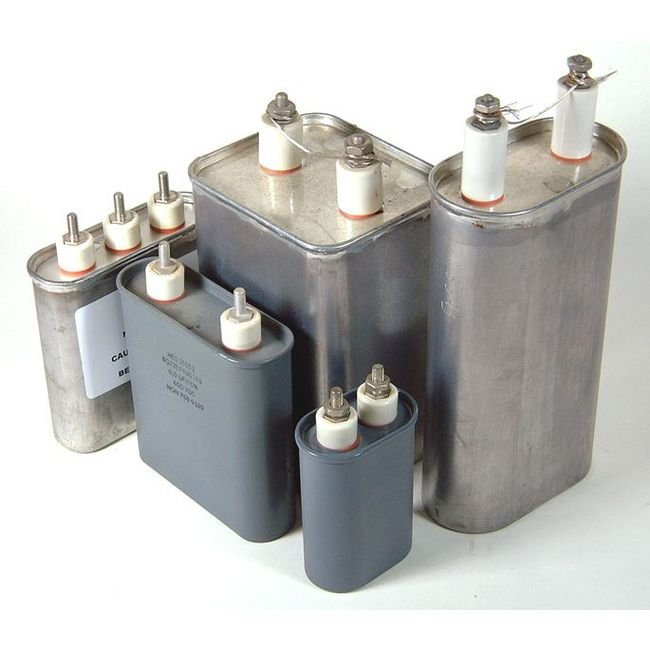

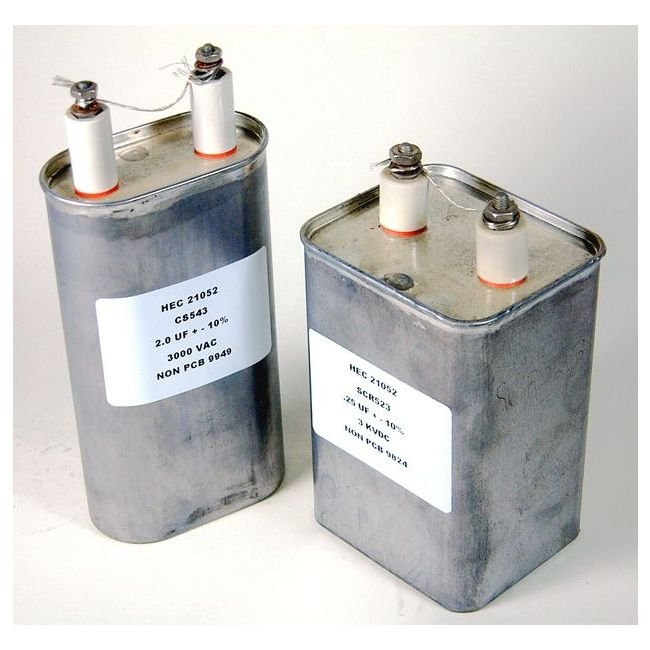

Oil-Filled Drawn Rectangular Can Capacitor - CC Series
Oil-Filled Drawn Rectangular Can Capacitor - CC Series
SKU:OIL-878a30
Enhance your power system with the CC Series Oil-Filled Drawn Rectangular Can Capacitor - reliable and durable for high-voltage applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Oil-Filled Drawn Rectangular Can Capacitor - CC Series
$69.99
Quantity: 1
Claim Your Seller Account
Oil-Filled Drawn Rectangular Can Capacitor - CC Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power system with the CC Series Oil-Filled Drawn Rectangular Can Capacitor. With a capacitance range of 1 to 20 µF and a voltage rating of 2000 VDC, this capacitor ensures reliable performance in high-voltage applications. Constructed with plated steel cans and environmentally friendly dielectric materials, it meets stringent industry standards for durability and efficiency. Ideal for both consumer and institutional buyers seeking top-quality oil-filled capacitors.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
20 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

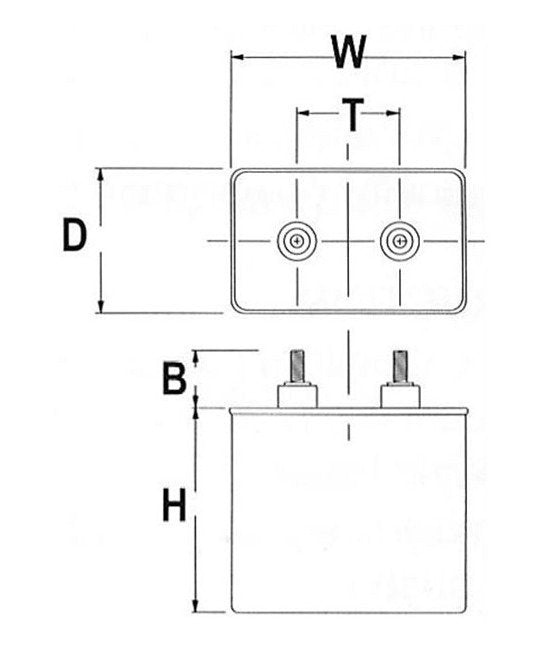

Specifications Dimension B
2 in
Specifications Dimension D
3.75 in
Specifications Dimension H
7 in
Specifications Dimension T
2.00 in
Specifications Dimension W
4.56 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
2000 V
