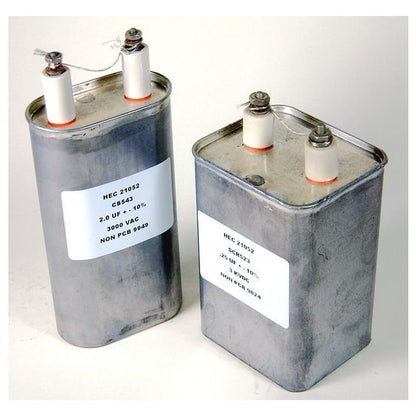

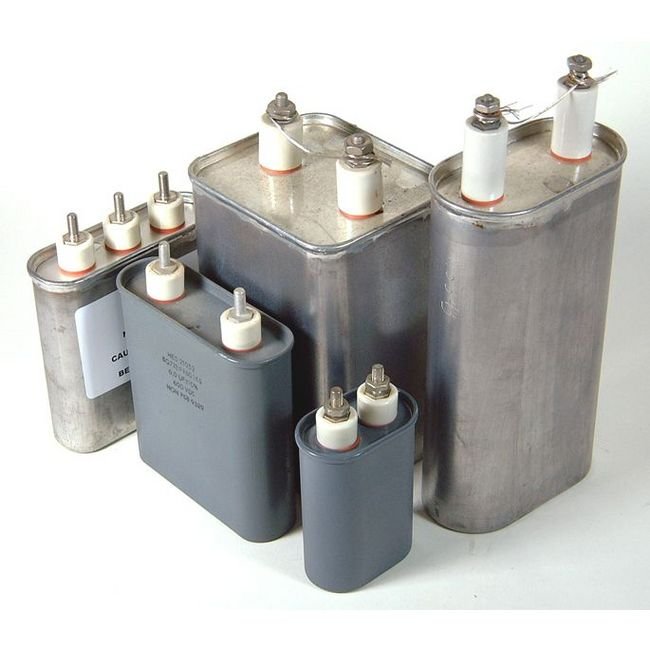

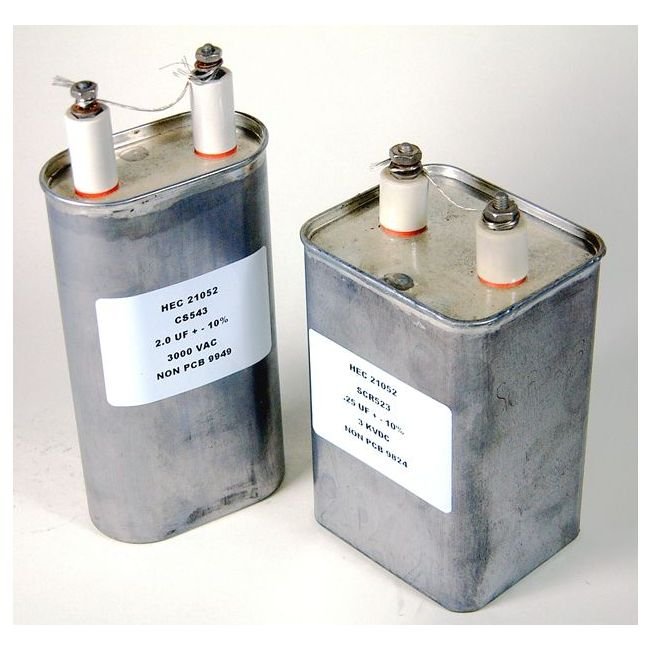

Oil-Filled Drawn Rectangular Can Capacitor - CC Series
Oil-Filled Drawn Rectangular Can Capacitor - CC Series
SKU:OIL-a01207
High-performance Oil-Filled Capacitor for DC filter applications, 1-20 µF, 2000 VDC, durable construction
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Oil-Filled Drawn Rectangular Can Capacitor - CC Series
$49.99
Quantity: 1
Claim Your Seller Account
Oil-Filled Drawn Rectangular Can Capacitor - CC Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Oil-Filled Drawn Rectangular Can Capacitor from the CC Series is a high-quality solution for DC filtering applications in institutional and industrial settings. With a capacitance range of 1 to 20 µF and a robust voltage rating of 2000 VDC, this capacitor ensures reliable performance in demanding environments. Its drawn plated steel construction with epoxy paint coating ensures durability and long-lasting operation. The capacitor is designed to withstand temperatures ranging from -40 to +90 ºC, making it ideal for various application scenarios. Additionally, it meets stringent industry standards for insulation resistance, AC ripple voltage, and dielectric reliability.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
10 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

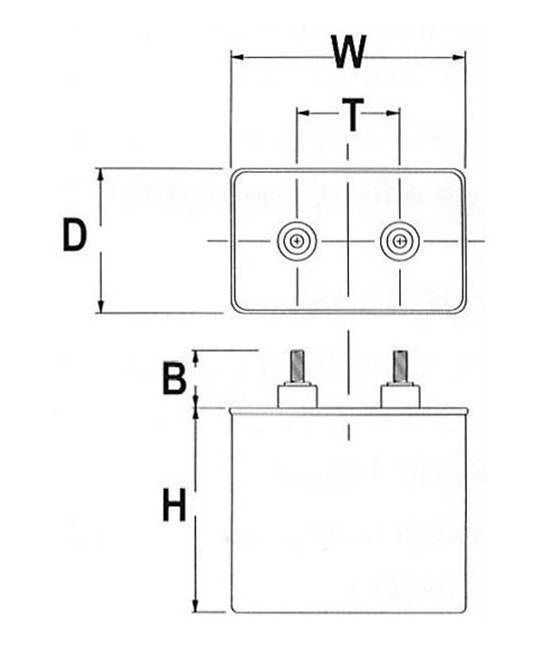

Specifications Dimension B
2 in
Specifications Dimension D
3.19 in
Specifications Dimension H
5.25 in
Specifications Dimension T
2.00 in
Specifications Dimension W
3.75 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
2000 V
