Oil-Filled High Voltage Capacitors - SCR Series

Name: Oil-Filled High Voltage Capacitors - SCR Series
Brand: High Energy Corp.
SKU: OIL-bd2f8e
Price: 49.99 USD
Availability: OutOfStock

SKU:OIL-bd2f8e

SCR Series Oil-Filled Capacitors - Ideal for snubber & commutation applications. Capacitance range: 0.25-15 µF, Voltage: 600-3000 VDC.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SCR Series Oil-Filled Capacitors are expertly designed for snubber & commutation applications, offering capacitance from 0.25 to 15 µF and voltage ranging between 600 to 3000 VDC. Constructed with precision using drawn plated steel cans, these capacitors feature a robust design suitable for demanding environments. With a capacitance tolerance of ±10%, operating temperature range of -40 to +90 ºC, and exceptional insulation resistance of 25000 MΩ, these capacitors ensure reliable performance under varying conditions. Compliant with industry standards and offering versatile shapes and dielectric materials, the SCR Series capacitors are ideal for meeting the stringent requirements of institutional and government procurement.

Product Specifications

Specifications Ac Ripple Voltage

The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz

Specifications Can Construction

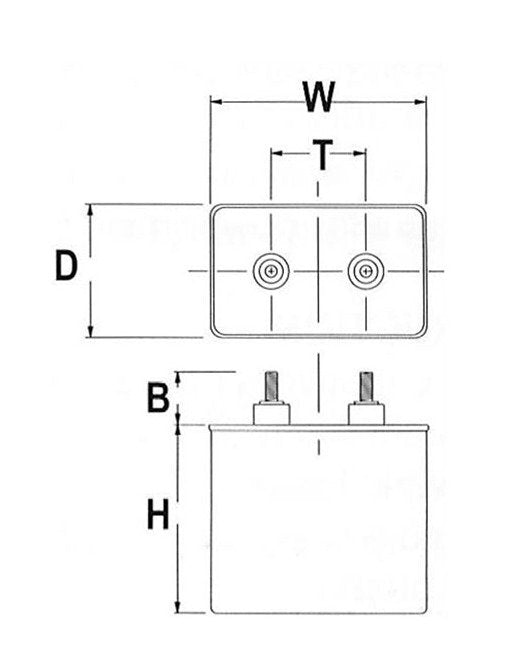

Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint

Specifications Capacitance Tolerance

±10% Standard

Specifications Dielectric

Kraft paper and polypropylene with environmentally compatible impregnant

Specifications Insulation Resistance At 25c Typical

25000 MΩ

Specifications Operating Temperature

-40 to +90 ºC

Specifications Shape

Oval | Rectangular
