Oil-Filled High Voltage Drawn Oval Capacitor
Oil-Filled High Voltage Drawn Oval Capacitor
SKU:OIL-2365f6
Reliable high voltage drawn oval capacitor with 1-20 µF capacitance and 5000 VDC rating for demanding applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Oil-Filled High Voltage Drawn Oval Capacitor
$49.99
Quantity: 1
Claim Your Seller Account
Oil-Filled High Voltage Drawn Oval Capacitor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

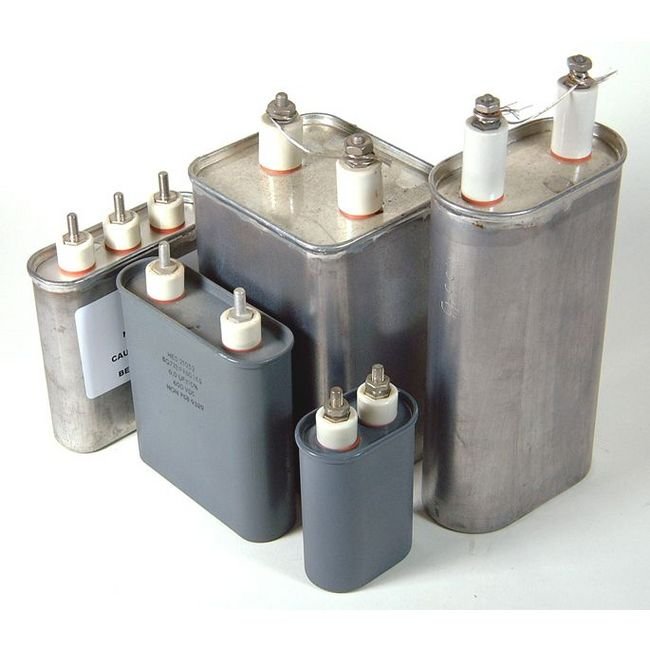

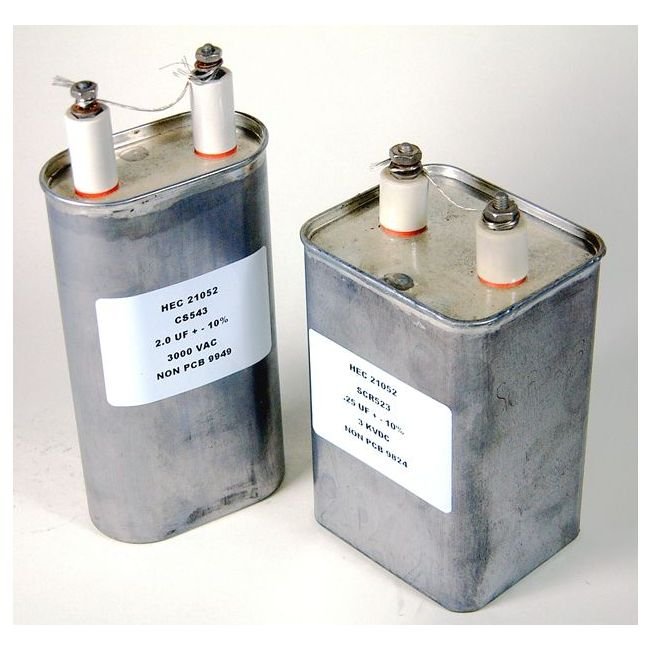

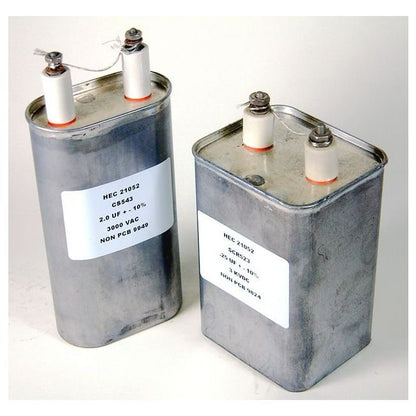

The Drawn Oval Can from the CC Series Oil-Filled Capacitors is a dependable solution for high voltage applications. With a capacitance range from 1 to 20 µF and a DC voltage rating of 5000 V, this capacitor ensures reliable performance in demanding environments. Its can construction featuring drawn plated steel with epoxy paint provides durability and protection. The capacitor meets stringent industry standards for insulation resistance, operating temperature range, and AC ripple voltage, making it ideal for government and institutional procurement needs.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
2 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

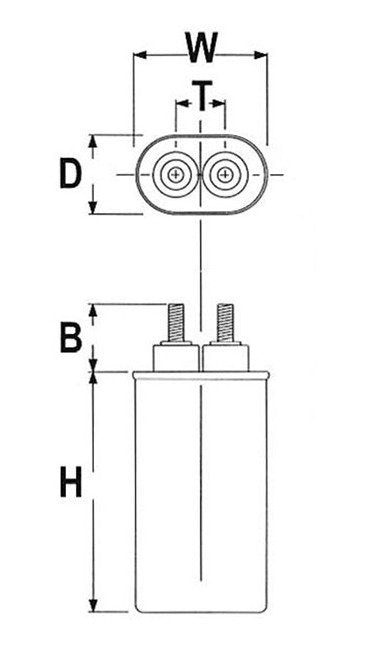

Specifications Dimension B
2 in
Specifications Dimension D
1.97 in
Specifications Dimension H
5 in
Specifications Dimension T
1.38 in
Specifications Dimension W
3.66 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
5000 V
