The Oil-Filled High Voltage Drawn Rectangular Can Capacitor from the CC Series offers a capacitance range of 1 to 20 µF and a voltage rating of up to 10,000 VDC, making it ideal for demanding applications. Constructed with drawn plated steel and epoxy paint, this capacitor ensures durability and reliable performance. With dimensions of 3.75" D x 4.56" W x 7" H and a robust dielectric consisting of kraft paper and polypropylene, this capacitor is designed to withstand harsh environments. It meets stringent industry standards for insulation resistance, operating temperature, capacitance tolerance, and AC ripple, providing a reliable solution for both consumer and institutional needs.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
2 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

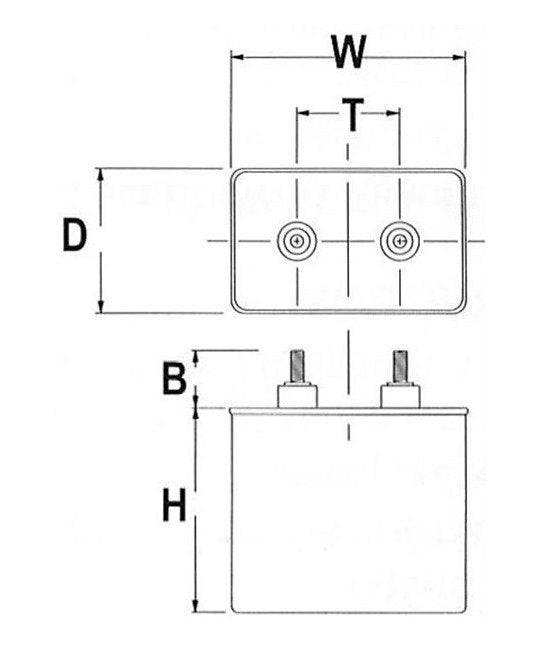

Specifications Dimension B
2 in
Specifications Dimension D
3.75 in
Specifications Dimension H
7 in
Specifications Dimension T
2.00 in
Specifications Dimension W
4.56 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
10000 V
