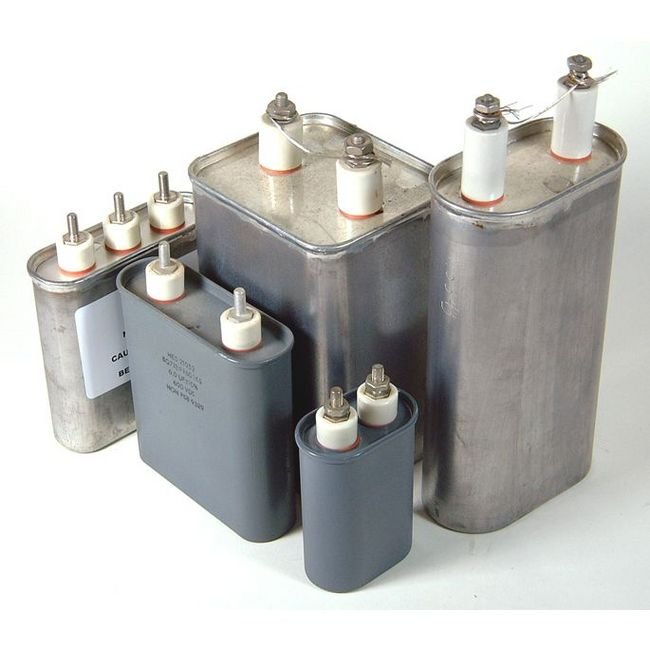

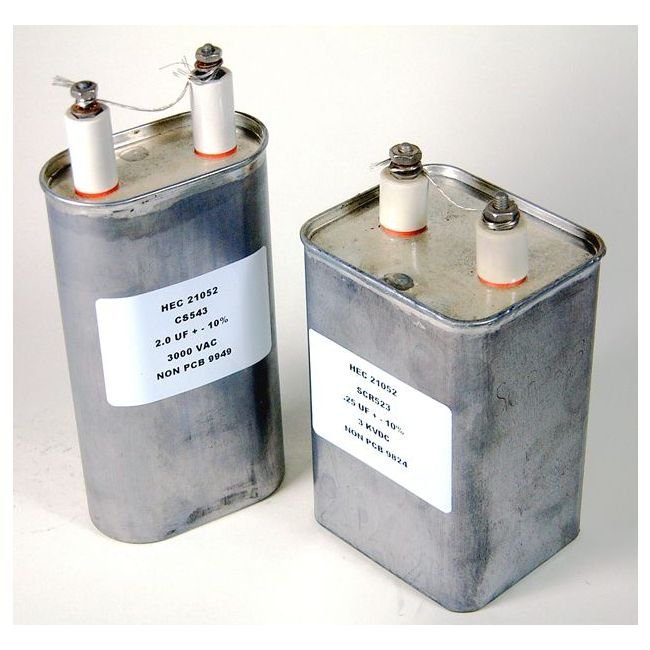

Oil-Filled High Voltage Drawn Rectangular Can - CC Series Capacitor
Oil-Filled High Voltage Drawn Rectangular Can - CC Series Capacitor
SKU:OIL-ad9813
High voltage oil-filled capacitor with 1-20 µF capacitance & up to 10,000 VDC. Plated drawn steel can construction for reliability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Oil-Filled High Voltage Drawn Rectangular Can - CC Series Capacitor
$49.99
Quantity: 1
Claim Your Seller Account
Oil-Filled High Voltage Drawn Rectangular Can - CC Series Capacitor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Oil-Filled High Voltage Drawn Rectangular Can from the CC Series Capacitors offers a capacitance range of 1 to 20 µF with a voltage rating of up to 10,000 VDC. Constructed with plated drawn steel cans, this capacitor ensures reliable performance in demanding environments. With a capacitance tolerance of ±10% standard and excellent insulation resistance, it operates seamlessly between -40 to +90 ºC temperatures. Compliant with stringent industry standards, this capacitor is an ideal choice for applications requiring high-performance DC filtering capabilities.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
1 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

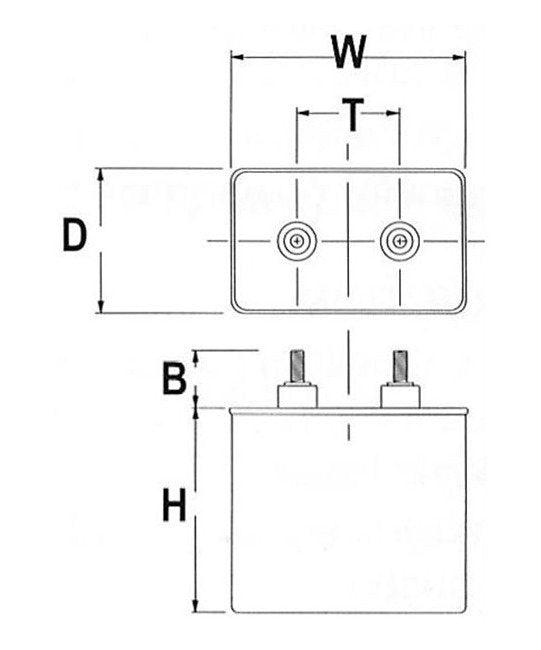

Specifications Dimension B
2 in
Specifications Dimension D
3.19 in
Specifications Dimension H
5.5 in
Specifications Dimension T
2.00 in
Specifications Dimension W
3.75 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
10000 V
