Oil-Filled High Voltage Rectangular Capacitor
Oil-Filled High Voltage Rectangular Capacitor
SKU:OIL-d67911
High voltage drawn rectangular capacitor with 1-20 µF capacitance & 5000 VDC. Durable construction & wide operating temperature range.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Oil-Filled High Voltage Rectangular Capacitor
$149.99
Quantity: 1
Claim Your Seller Account
Oil-Filled High Voltage Rectangular Capacitor
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

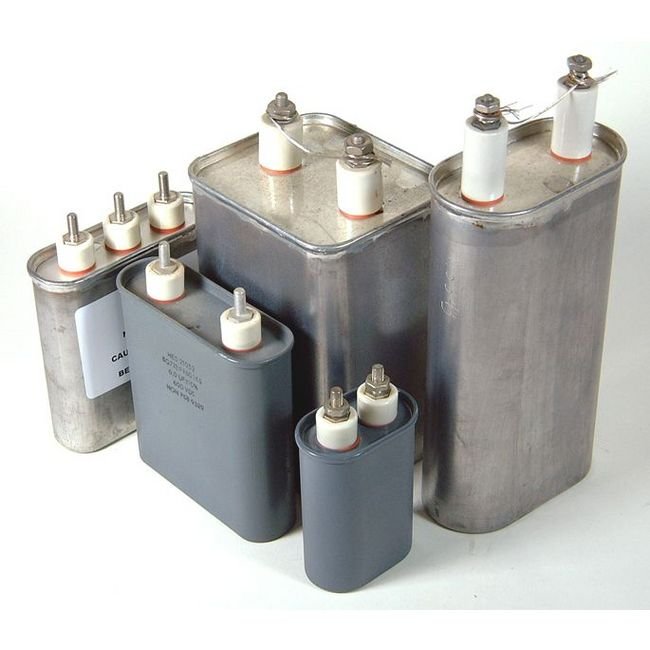

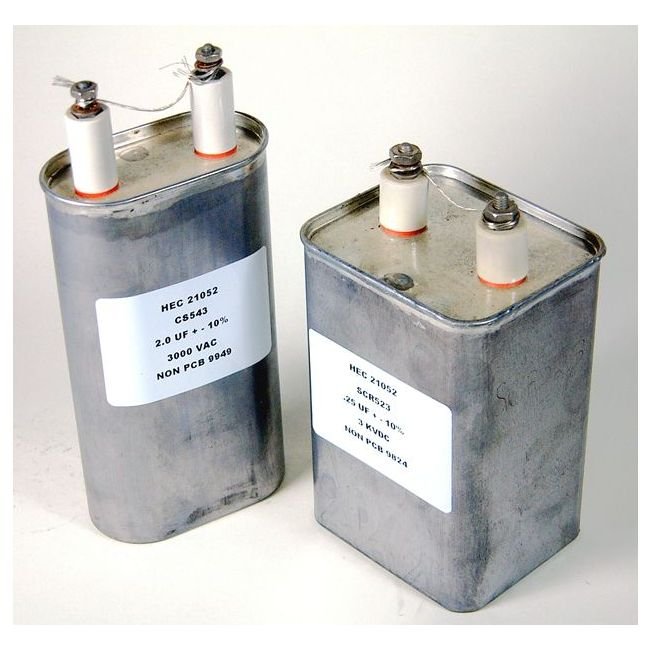

The Drawn Rectangular Can from the CC Series Oil-Filled Capacitors offers a capacitance range of 1 to 20 µF with a voltage rating of 5000 VDC, making it ideal for high voltage applications. Constructed with plated drawn steel cans and featuring dimensions of 3.75" (D) x 4.56" (W) x 7.25" (H), this capacitor ensures reliable performance in a compact form factor. With a wide operating temperature range of -40 to +90 ºC and excellent insulation resistance of 25000 MΩ, it meets stringent industry standards for durability and reliability. The can's construction using drawn plated steel with epoxy paint and dielectrics including kraft paper and polypropylene ensures long-term performance and environmental compatibility.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
10 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

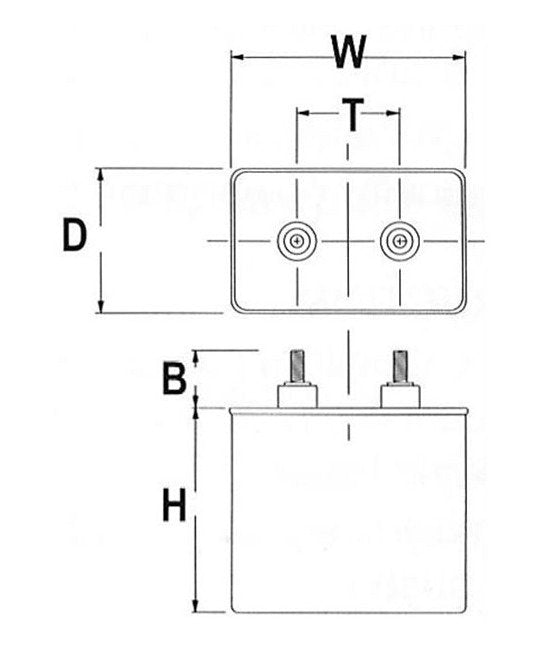

Specifications Dimension B
2 in
Specifications Dimension D
3.75 in
Specifications Dimension H
7.25 in
Specifications Dimension T
2.00 in
Specifications Dimension W
4.56 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
5000 V
