Oil-Filled High Voltage Rectangular Capacitor
Oil-Filled High Voltage Rectangular Capacitor
SKU:OIL-3f4581
Boost your power system with our SCR Series Oil-Filled Rectangular Capacitor. Reliable performance and safety guaranteed.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Oil-Filled High Voltage Rectangular Capacitor
$39.99
Quantity: 1
Claim Your Seller Account
Oil-Filled High Voltage Rectangular Capacitor
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your power system with the SCR Series Oil-Filled Capacitors. This rectangular can Capacitor offers a capacitance range of 0.25 to 15 µF, with a voltage rating of 2000 VDC. Constructed with drawn plated steel cans and a Kraft paper/polypropylene dielectric, it ensures reliable performance in temperatures ranging from -40 to +90 ºC. The insulating material is environmentally friendly, meeting industry standards for safety and efficiency.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
15 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

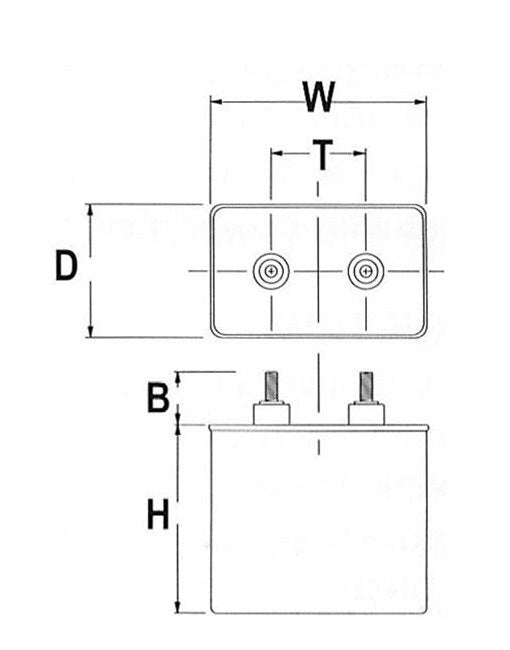

Specifications Dimension B
1.25
Specifications Dimension D
3.75
Specifications Dimension H
7.00
Specifications Dimension T
2.00
Specifications Dimension W
4.56
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Rectangular
Specifications Voltage Dc
2000 V
