Oil-Filled Oval Capacitor Can - 2 µF, 600 VDC
Oil-Filled Oval Capacitor Can - 2 µF, 600 VDC
SKU:OIL-cca023
High-performance oil-filled oval capacitor can - 2 µF, 600 VDC. Reliable and durable construction for demanding applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Oil-Filled Oval Capacitor Can - 2 µF, 600 VDC
$39.99
Quantity: 1
Claim Your Seller Account
Oil-Filled Oval Capacitor Can - 2 µF, 600 VDC
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

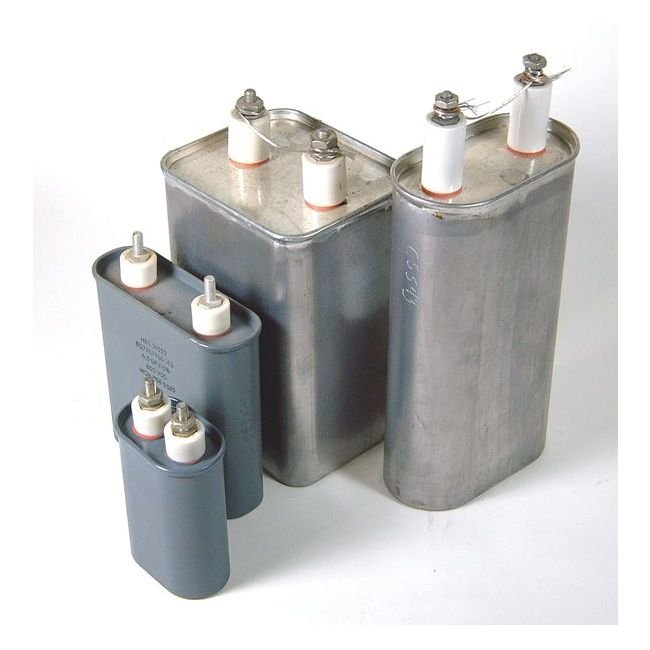

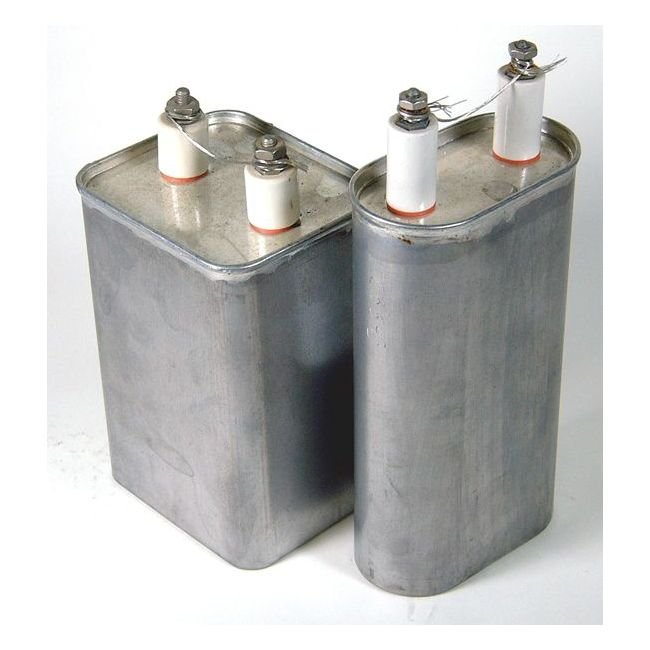

The SCR Series Drawn Oval Can is a high-quality oil-filled capacitor designed for snubber and commutation applications. With a capacitance range of 0.25 to 15 µF and a voltage rating of 600 VDC, this capacitor offers reliable performance in demanding environments. Constructed with drawn plated steel cans and Kraft paper/polypropylene dielectric impregnated with an environmentally compatible substance, it ensures superior insulation resistance and longevity. The capacitor complies with strict industry standards, making it an ideal choice for institutional and government procurement.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
2 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

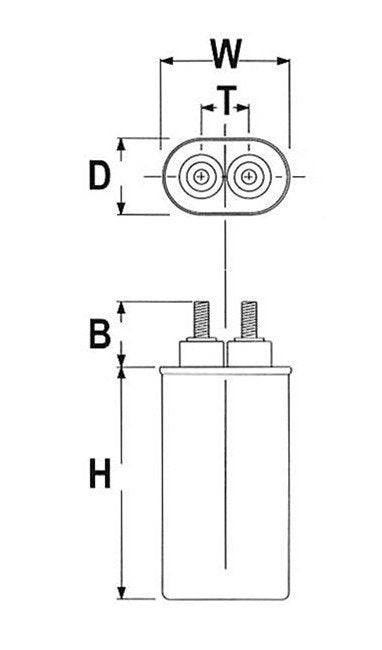

Specifications Dimension B
1.25
Specifications Dimension D
1.31
Specifications Dimension H
3.50
Specifications Dimension T
0.81
Specifications Dimension W
2.19
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
600 V
