Oil-Filled Oval High Voltage Capacitor - 5µF, 2000V SCR Series
Oil-Filled Oval High Voltage Capacitor - 5µF, 2000V SCR Series
SKU:OIL-4330fe
High-performance Oil-Filled Oval Capacitor - Ideal for industrial applications
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Oil-Filled Oval High Voltage Capacitor - 5µF, 2000V SCR Series
$39.99
Quantity: 1
Claim Your Seller Account
Oil-Filled Oval High Voltage Capacitor - 5µF, 2000V SCR Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

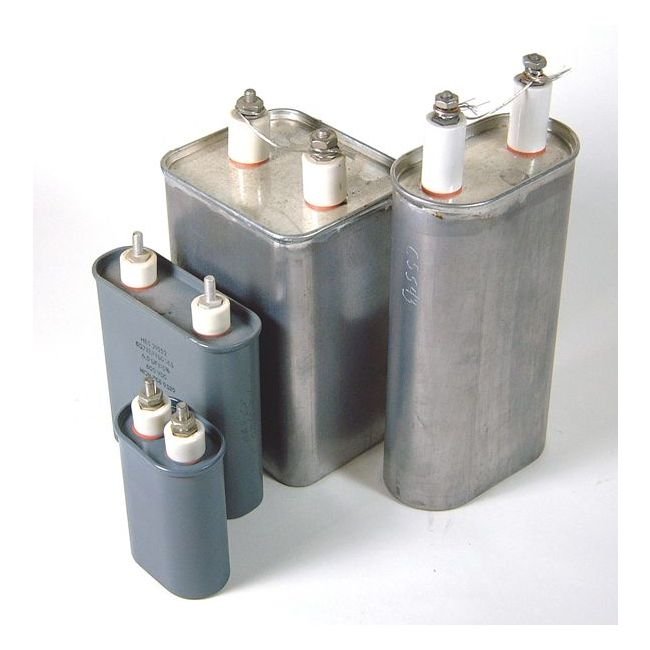

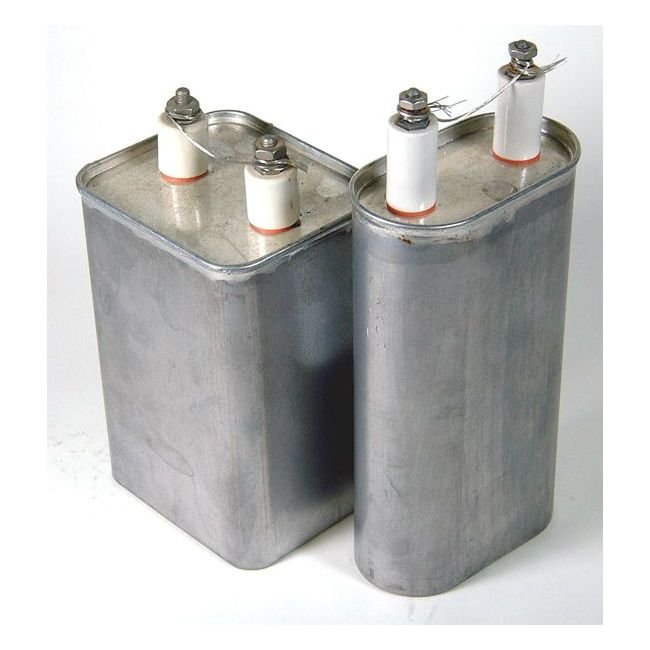

The Oil-Filled Oval High Voltage Capacitor from the SCR Series offers a capacitance range of 0.25 to 15 µF with ±10% standard capacitance tolerance. Featuring an environmentally friendly dielectric of Kraft paper and polypropylene, this capacitor is housed in a drawn plated steel can for robust insulation. With an operating temperature range of -40 to +90 ºC and excellent insulation resistance, this capacitor ensures reliable performance in varied industrial applications. Compliant with federal procurement standards and GSA requirements, this product meets the stringent quality benchmarks required by institutional buyers.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
5 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

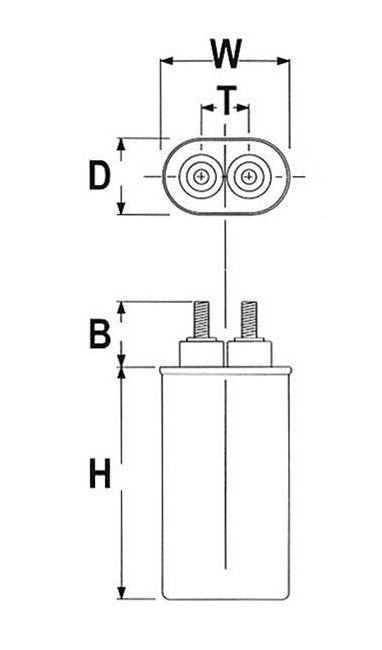

Specifications Dimension B
1.25
Specifications Dimension D
1.97
Specifications Dimension H
5.50
Specifications Dimension T
1.38
Specifications Dimension W
3.66
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
2000 V
