Oil Resistant Liquid-Tight Flexible Metal Conduit
Oil Resistant Liquid-Tight Flexible Metal Conduit
SKU:LIQ-0501a5
Enhance wiring protection in challenging environments with our Oil Resistant Liquid-Tight Flexible Metal Conduit. IP 67 rated for superior performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

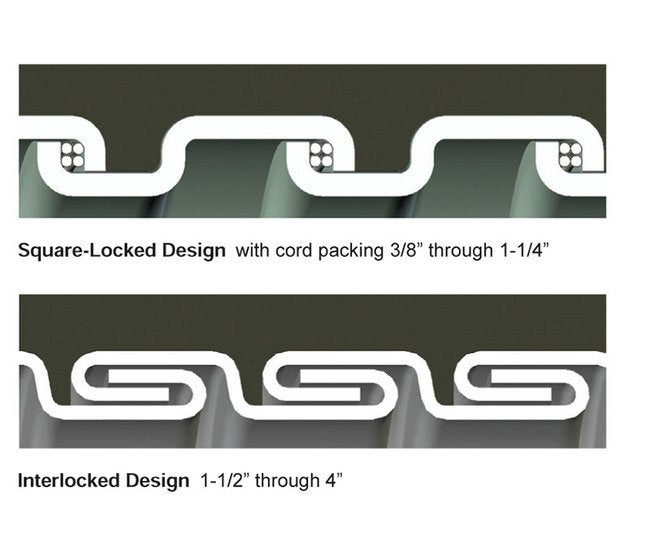

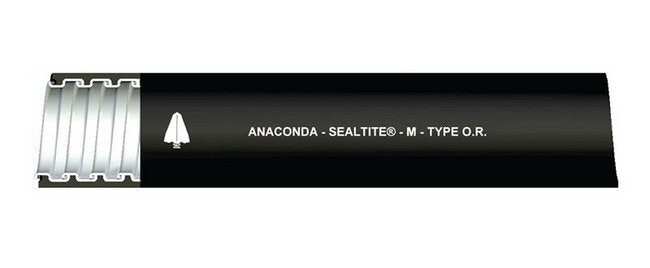

The Oil Resistant Liquid-Tight Flexible Metal Conduit, Type OR, is crafted to deliver unparalleled wiring protection with its continuously interlocked hot-dipped zinc galvanized steel core and sunlight-resistant PVC jacket. Designed for applications not requiring agency approvals, this conduit offers IP 67 ingress protection when used with approved connectors. With a temperature range of -9ºF to +221ºF, it ensures reliable performance even in challenging environments where exposure to cutting oils occurs. Ideal for institutional and government use, this conduit is a versatile solution for a range of wiring needs.
Product Specifications
Application 0
Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.5 in | 63.5 mm
Specifications Approx Weight Per 100 Ft
25 lbs | 11.34 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
LOR-11
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.620 to 0.640 in | 15.748 to 16.256 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
500 ft | 152.4 m
Specifications Note
Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.
Specifications Optional Colors
Gray
Specifications Outside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Packaging
Small Reels
Specifications Type
OR
