Oil Resistant Liquid-Tight Flexible Metal Conduit 3/8" Type OR LFMC
Oil Resistant Liquid-Tight Flexible Metal Conduit 3/8" Type OR LFMC
SKU:LIQ-e61aee
Oil Resistant Liquid-Tight Flexible Metal Conduit for superior wiring protection in oil-exposed environments. IP 67 rated with approved connectors.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Oil Resistant Liquid-Tight Flexible Metal Conduit 3/8" Type OR LFMC
$149.99
Quantity: 1
Claim Your Seller Account
Oil Resistant Liquid-Tight Flexible Metal Conduit 3/8" Type OR LFMC
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

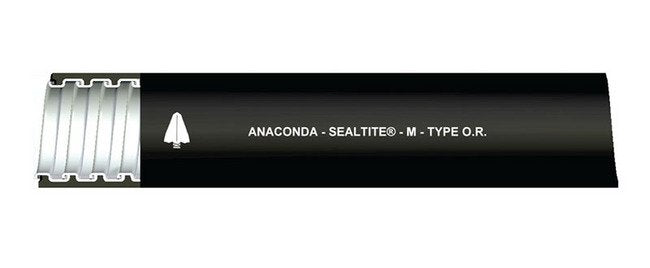

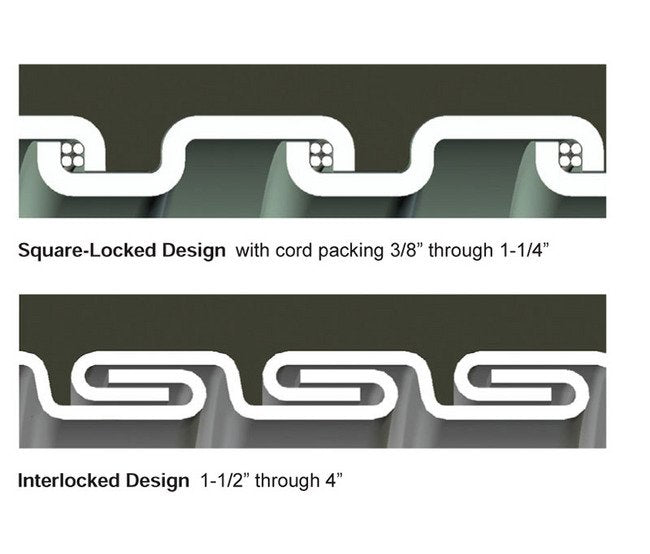

The Oil Resistant Liquid-Tight Flexible Metal Conduit Type OR LFMC is designed to provide a flexible and liquid-tight raceway for wiring in environments where exposure to cutting oils occurs. This conduit features a continuously interlocked hot dipped zinc galvanized steel core with a PVC outer jacket that is sunlight resistant and oil resistant. It is IP 67 rated when used with approved connectors, offering superior wiring protection without the need for agency approvals. This conduit is suitable for a temperature range of -9ºF to +221ºF (-23ºC to +105ºC) and is available in a trade size of 3/8 inches. Ideal for applications requiring oil resistance and flexibility without compromising on durability.
Product Specifications
Application 0
Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.0 in | 50.8 mm
Specifications Approx Weight Per 100 Ft
21 lbs | 9.53 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
LOR-10
Specifications Electrical Trade Size
3/8 in | 12 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.485 to 0.505 in | 12.319 to 12.827 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.
Specifications Optional Colors
Gray
Specifications Outside Diameter
0.690 to 0.710 in | 17.526 to 18.034 mm
Specifications Packaging
Small Cartons
Specifications Type
OR
