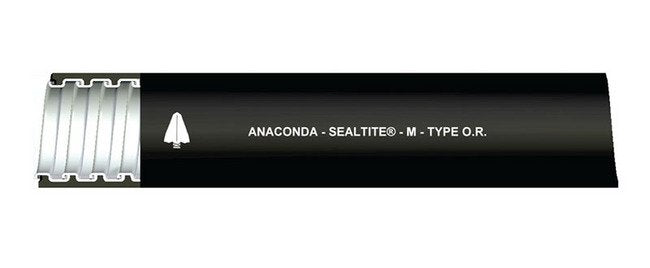

Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR
Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR
SKU:LIQ-01c6a8
Enhance wiring protection with our durable Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR. Ideal for environments with cutting oils.
Regular price
$130.99
Regular price
Sale price
$130.99
Unit price
per
Initiate Order
Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR
$130.99
Quantity: 1
Claim Your Seller Account
Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR
$130.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electrical installations with our Type OR Special Oil Resistant Jacket Liquid-Tight Flexible Metal Conduit. This conduit provides a flexible and liquid-tight raceway for wiring, constructed with a zinc galvanized steel core and a PVC outer jacket. With an IP 67 rating, smooth appearance, and a temperature range of -9ºF to +221ºF, it offers superior wiring protection. Ideal for environments with exposure to cutting oils, this conduit is RoHS and WEEE certified.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
5.5 in | 139.7 mm
Specifications Approx Weight Per 100 Ft
104 lbs | 47.17 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
LOR-15
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.
Specifications Optional Colors
Gray
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Small Cartons
Specifications Type
OR
