Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR

Name: Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR
Brand: Anamet Electrical, Inc.
SKU: LIQ-4dd2e5
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-4dd2e5

Premium oil-resistant flexible conduit for industrial wiring. IP 67 rated. Ideal for oil-exposed environments. Temperature range: -9ºF to +221ºF.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

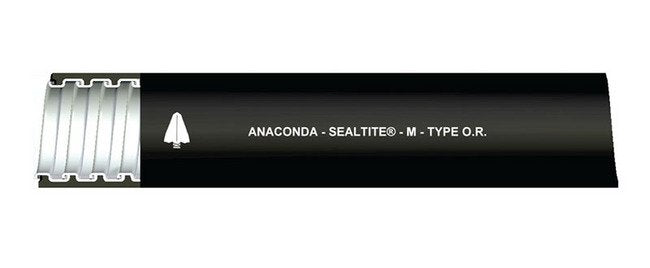

The Oil Resistant Liquid-Tight Flexible Metal Conduit (Type OR) is a high-quality, flexible raceway designed for wiring applications in industrial environments. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight resistant PVC jacket, this conduit offers superior protection against oil exposure. With an IP 67 rating when used with approved connectors, it ensures reliable performance where agency approvals are not required. Suitable for a temperature range of -9ºF to +221ºF (-23ºC to +105ºC), it provides a liquid-tight solution for electrical conductors in challenging conditions.

Product Specifications

Application 0

Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

21 lbs | 9.53 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

LOR-10

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

800 ft | 243.84 m

Specifications Note

Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.

Specifications Optional Colors

Gray

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Small Reels

Specifications Type

Oil Resistant Liquid-Tight Flexible Metal Conduit - Type OR
