Oil Resistant Liquid-Tight Metal Conduit (LFMC) - Type OR

Name: Oil Resistant Liquid-Tight Metal Conduit (LFMC) - Type OR
Brand: Anamet Electrical, Inc.
SKU: LIQ-a27ce2
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-a27ce2

Flexible, Oil Resistant LFMC conduit for superior wiring protection in oil-exposed environments. IP 67 rated. RoHS & WEEE certified.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

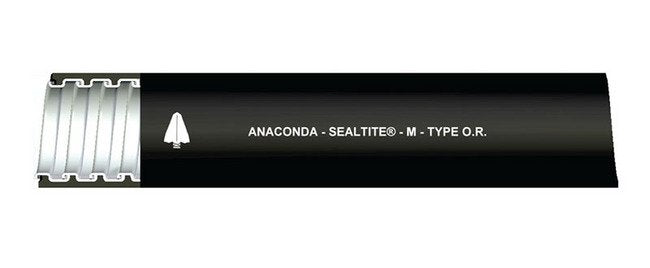

The Oil Resistant Liquid-Tight Metal Conduit (LFMC) Type OR is designed for applications requiring a flexible and liquid-tight raceway for wiring. Constructed with a hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit offers superior protection in environments exposed to cutting oils. With an IP 67 rating when used with approved connectors, it ensures reliable performance in extreme conditions. Available in various trade sizes, this conduit is RoHS and WEEE certified, meeting industry standards for safety and quality.

Product Specifications

Application 0

Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

25 lbs | 11.34 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

LOR-11

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.620 to 0.640 in | 15.748 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.

Specifications Optional Colors

Gray

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Small Cartons

Specifications Type

Oil Resistant Liquid-Tight Metal Conduit (LFMC) - Type OR
