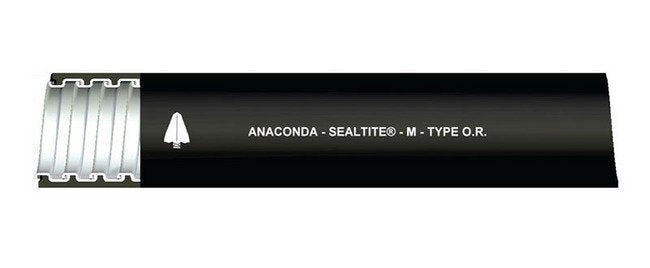

Oil Resistant Liquid-Tight Metal Conduit - Type OR 1-1/4"

Name: Oil Resistant Liquid-Tight Metal Conduit - Type OR 1-1/4"
Brand: Anamet Electrical, Inc.
SKU: LIQ-b3793d
Price: 199.99 USD
Availability: OutOfStock

SKU:LIQ-b3793d

Durable Type OR 1-1/4" Liquid-Tight Metal Conduit, offers top-tier protection & flexibility for electrical wiring applications.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

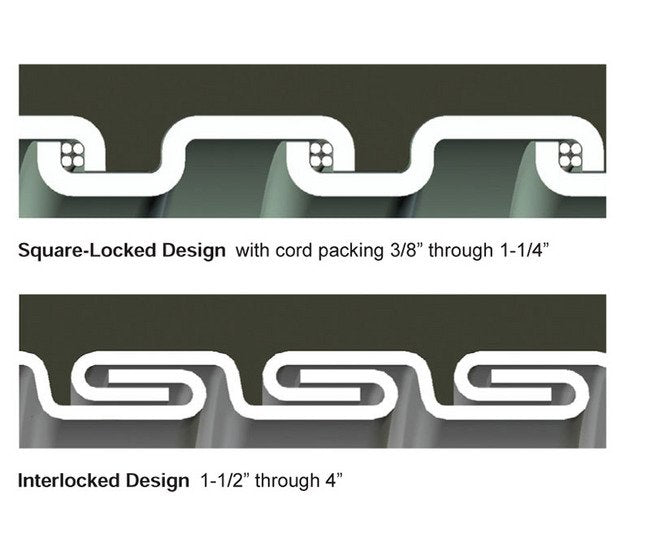

The Oil Resistant Liquid-Tight Metal Conduit Type OR is a top-tier solution for electrical wiring applications requiring flexibility and protection. With a durable construction of continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit ensures a secure, liquid-tight raceway. Ideal for environments where agency approvals are not mandatory, it boasts an IP 67 rating when paired with approved connectors. Designed for a temperature range of -9ºF to +221ºF (-23ºC to +105ºC), it excels in areas exposed to cutting oils. This conduit offers superior wiring safeguarding capabilities and easy installation with standard liquid-tight connectors.

Product Specifications

Application 0

Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.5 in | 114.3 mm

Specifications Approx Weight Per 100 Ft

66 lbs | 29.94 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

LOR-14

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.370 to 1.395 in | 34.798 to 35.433 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

250 ft | 76.2 m

Specifications Note

Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.

Specifications Optional Colors

Gray

Specifications Outside Diameter

1.635 to 1.660 in | 41.529 to 42.164 mm

Specifications Packaging

Small Reels

Specifications Type

Oil Resistant Liquid-Tight Metal Conduit - Type OR 1-1/4"
