Oil/Water Separator - Troubleshooter 55 Gal Filter Capacity

Oil/Water Separator - Troubleshooter 55 Gal Filter Capacity

SKU:NEW-aab457

Gardner Denver™ Troubleshooter Oil/Water Separator - 55 Gal Capacity - Efficiently separates emulsified oils with patented delivery system

Regular price $2,499.99
Regular price Sale price $2,499.99
Sale

Initiate Order

Oil/Water Separator - Troubleshooter 55 Gal Filter Capacity

Oil/Water Separator - Troubleshooter 55 Gal Filter Capacity

$2,499.99

Quantity: 1

Claim Your Seller Account

Oil/Water Separator - Troubleshooter 55 Gal Filter Capacity

Oil/Water Separator - Troubleshooter 55 Gal Filter Capacity

$2,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

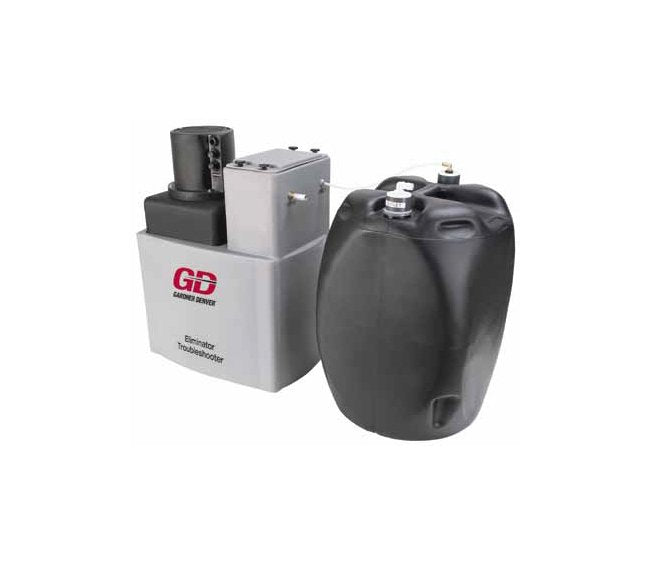

The Troubleshooter Oil/Water Separator with a 55-gallon filter capacity by Gardner Denver™ is a superior solution for separating emulsified compressor condensate, ensuring levels of 15 ppm or less for optimal discharge water quality. This innovative separator features a patented delivery system with a pneumatically operated pump to prevent clogging, increased media efficiency allowing up to four times more oil retention than standard carbon filters, and low maintenance costs. With non-corrosive materials, extended filter life, and effortless maintenance procedures, this separator is ideal for institutional applications requiring reliable and efficient oil-water separation.

Product Specifications

Additional Information
Those filters have to be replaced before their capacity is fully used. This is a result of oil binding off the pore area of the carbon where the condensate first comes in contact with the filter. The jelled oil clogs the filter, which then prevents the volume of condensate from properly flowing through the filter. This premature failure of the carbon filters most often results in the system backing up on the floor.Inter-connecting fittings and hoses are supplied for connecting the delivery system to the filter modules.
Benefits And Savings
Troubleshooter, is designed to effectively separate emulsified compressor condensate to levels of 15 ppm or less without premature element failure and backup spillages.Delivery system, (patent pending) has pneumatically operated pump that is used to feed the filter module. The use of the pressure assures the filter will not clog.Increased media's ability, up to four times the amount of oil that standard activated carbon can hold. This is due to the aluminosilicate is coated with hydrophobic compound (patent pending).Improved efficiency, system only requires compressed air to operate the diaphragm pump.Same delivery system is used for each filter module. Expanding air system may only require a larger filter module.
Features
Separates Emulsified OilsLow Maintenance CostsOnly Two Moving PartsFully AutomaticNon-Corrosive MaterialsExtended Filter LifeNon-Clogging Filter DesignEffortless Maintenance Procedures
Note
Not recommended for Food Grade or Silicone based lubricants. All design specifications are subject to change without notice.
Operation

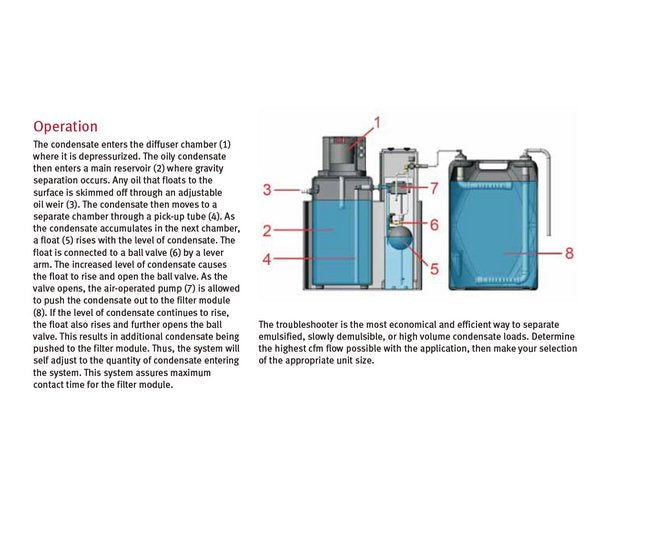

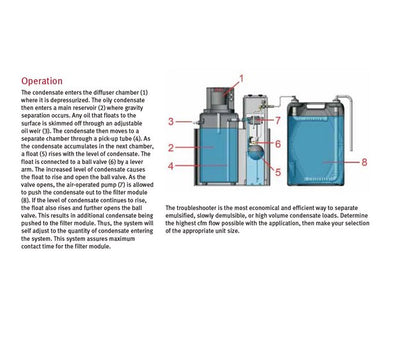

The condensate enters the diffuser (1) chamber where it is depressurized. The oily condensate then enters a main reservoir (2) where gravity separation occurs. Any oil that floats to the surface is skimmed off through an adjustable oil weir (3). The condensate then moves to a separate chamber through a pick-up tube (4). As the condensate accumulates in the next chamber, a float (5) rises with the level of condensate. The float is connected to a ball valve (6) by a lever arm. The increased level of condensate causes the float to rise and open the ball valve. As the valve opens, the air-operated pump (7) is allowed to push the condensate out to the filter module (8). If the level of condensate continues to rise, the float also rises and further opens the ball valve. This results in additional condensate being pushed to the filter module. Thus, the system will self-adjust to the quantity of condensate entering the system. This system assures maximum contact time for the filter module.The troubleshooter is the most economical and efficient way to separate emulsified, slowly demulsible, or high volume condensate loads. Determine the highest cfm flow possible with the application, then make your selection of the appropriate unit size.
Specifications Container Material
Polyethylene
Specifications Delivery Flow
560 to 1125 ft³/min
Specifications Depth
23 in
Specifications Filter Capacity
55 gal
Specifications Height
33 in
Specifications Inlet Pipe Size
3/8 in
Specifications Maximum Oil Capacity
24 gal
Specifications Maximum Power
200 hp
Specifications Water Output Pipe Size
2 in
Specifications Weight
400 lb
Specifications Width
23 in
Troubleshooter Filter Modules Container Material Troubleshooter
Polypropylene
Troubleshooter Filter Modules Depth Troubleshooter Filter Module
16 in
Troubleshooter Filter Modules Filter Capacity Troubleshooter Fil
55 gal
Troubleshooter Filter Modules Height Troubleshooter Filter Modul
38 in
Troubleshooter Filter Modules Inlet Size Troubleshooter Filter M
1/2 in
Troubleshooter Filter Modules Inlet Type Troubleshooter Filter M
NPT in
Troubleshooter Filter Modules Maximum Capacity Troubleshooter Fi
0.9 gpm
Troubleshooter Filter Modules Maximum Flow At 20 Psi Troubleshoo
0.35 ft³/min
Troubleshooter Filter Modules Note For Troubleshooter Filter Mod
A Troubleshooter filter module could last 12 months in a Rotary Screw application. However, filter life may be less due to lubricant, compressor type, and maintenance. Reduce cfm ratings by 50% for reciprocating compressors with lubricators.When properly maintained, the troubleshooter will have discharge water containing less than 15 ppm of oil remaining.
Troubleshooter Filter Modules Oil Out Troubleshooter Filter Modu
3/4 in
Troubleshooter Filter Modules Pump Material Troubleshooter Filte
Acetal | Viton
Troubleshooter Filter Modules Troubleshooter Filter Module Part
7037095
Troubleshooter Filter Modules Width Troubleshooter Filter Module
24 in
