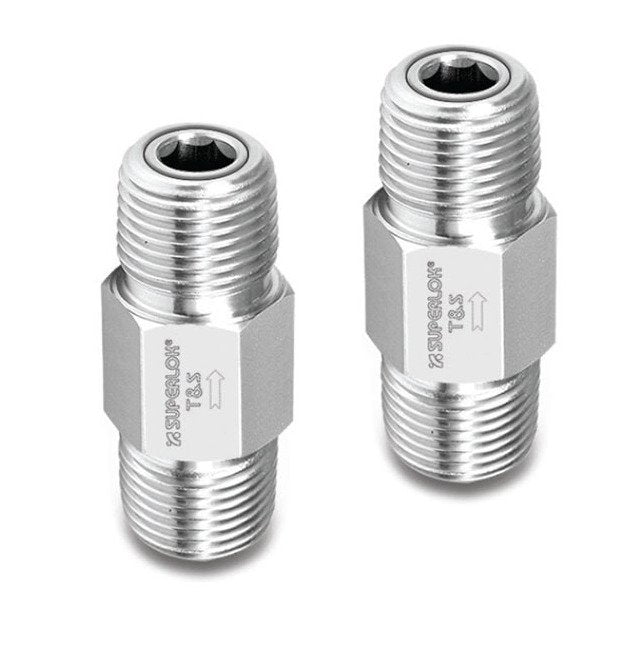

The SOCV Series One-Piece Check Valve features a durable 316 stainless steel body and NPT/ISO pipe end connections, ensuring reliable performance in diverse applications. With a maximum working pressure of 3000 psig, precise flow coefficients (Cv) of 0.35, and options for both FKM and NBR O-Ring seal materials, this valve guarantees optimal functionality. Each valve undergoes rigorous testing for cracking pressure and reseal performance, meeting stringent quality standards. Engineered for efficiency and longevity, this check valve is a trusted choice for institutional and government procurement needs.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass

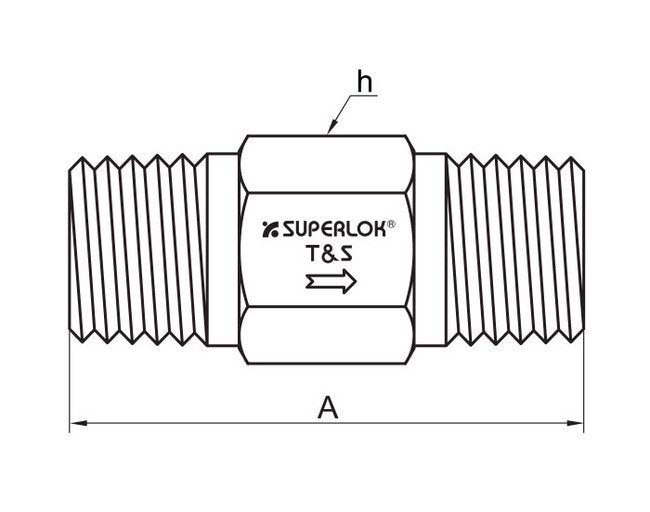

Technical Specs Dimension A
44.5 mm
Technical Specs Flow Coefficients Cv
0.35
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
19.1 mm | 3/4 in
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Back Pressure At 70 Degree Fahrenheit F
3000 psig | 206 bar
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Nominal Cracking Pressure
1/3 psig | 1 psig | 10 psig | 25 psig | 0.02 bar | 0.06 bar | 0.68 bar | 1.7 bar
Technical Specs Outlet End Connections
1/4 Female National Pipe Thread (FNPT)
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
