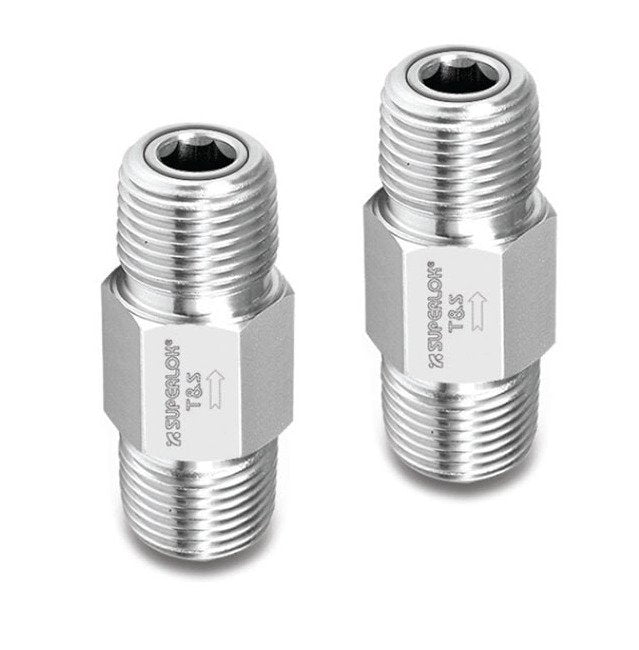

The SOCV Series One-Piece Check Valve boasts a robust design with a 41.2mm Dimension A and 14.3mm Hex h, ideal for ensuring unidirectional flow in demanding systems. This valve is meticulously tested for cracking pressure and reseal performance, offering reliable operation under pressures up to 3000 psig. With Fluorocarbon (FKM) and Nitrile Butadiene Rubber (NBR) O-Ring options, along with 316 Stainless Steel or Brass body materials, this valve ensures versatile compatibility and durability. The 0.35 Cv and precise engineering make it a top choice for various applications in both consumer and institutional settings.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

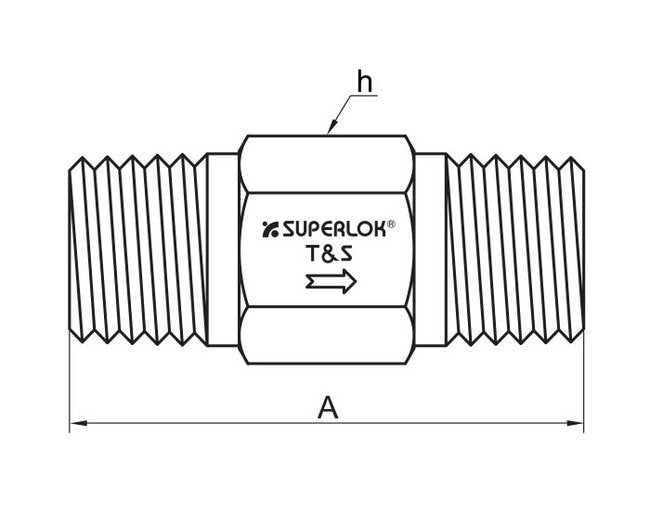

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
41.2 mm
Technical Specs Flow Coefficients Cv
0.35
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
14.3 mm | 9/16 in
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Back Pressure At 70 Degree Fahrenheit F
3000 psig | 206 bar
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Nominal Cracking Pressure
1/3 psig | 1 psig | 10 psig | 25 psig | 0.02 bar | 0.06 bar | 0.68 bar | 1.7 bar
Technical Specs Outlet End Connections
1/4 Male National Pipe Thread (MNPT)
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
