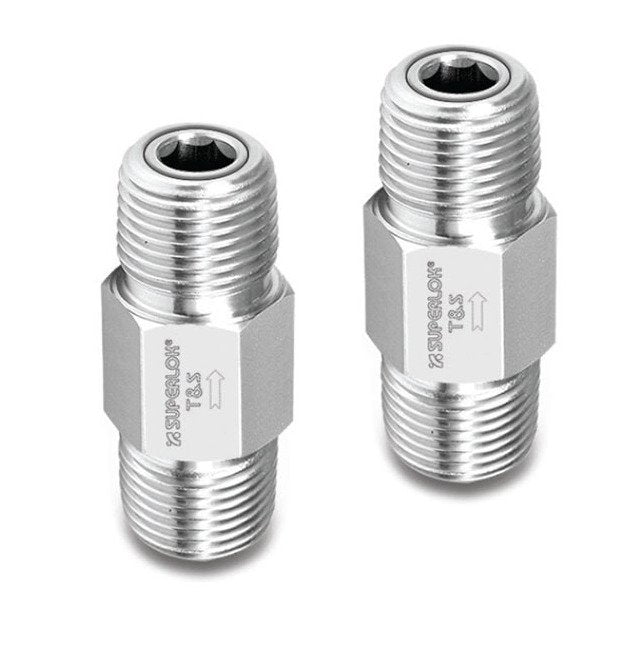

One-Piece Check Valve - SOCV Series | 58.2mm Dimension A | 19.1mm Hex h
One-Piece Check Valve - SOCV Series | 58.2mm Dimension A | 19.1mm Hex h
SKU:SOC-b71253
High-performance one-piece check valve with 3000 psig pressure rating & reliable O-Ring seals for diverse applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
One-Piece Check Valve - SOCV Series | 58.2mm Dimension A | 19.1mm Hex h
$89.99
Quantity: 1
Claim Your Seller Account
One-Piece Check Valve - SOCV Series | 58.2mm Dimension A | 19.1mm Hex h
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SOCV Series One-Piece Check Valve is designed for high-performance applications, featuring maximum working pressure of 3000 psig and various cracking pressure options. With Fluorocarbon and Nitrile Butadiene Rubber O-Ring temperature ratings, this valve ensures reliable operation in diverse environments. Its 316 stainless steel body, NPT and ISO pipe end connections, and rigorous factory testing make it a durable and secure choice for fluid control systems in both consumer and institutional settings.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

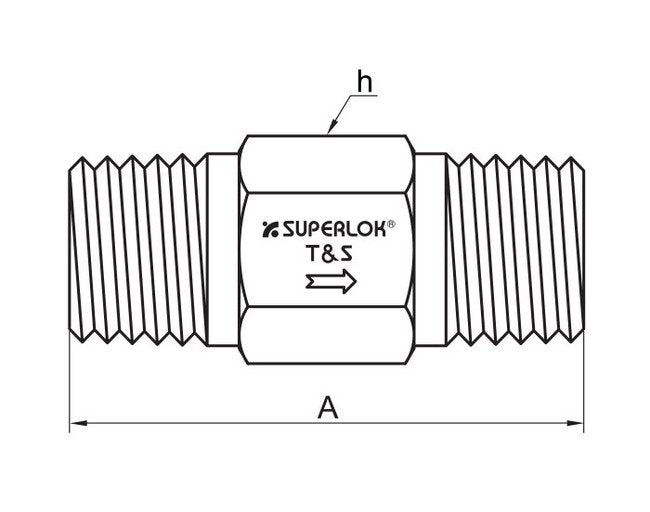

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
58.2 mm
Technical Specs Flow Coefficients Cv
0.35
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
19.1 mm | 3/4 in
Technical Specs Inlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Back Pressure At 70 Degree Fahrenheit F
3000 psig | 206 bar
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Nominal Cracking Pressure
1/3 psig | 1 psig | 10 psig | 25 psig | 0.02 bar | 0.06 bar | 0.68 bar | 1.7 bar
Technical Specs Outlet End Connections
1/4 Male National Pipe Thread (MNPT)
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
