One-Piece Check Valve SOCV Series - 64.5mm Dimension A, 19.1mm Hex h
One-Piece Check Valve SOCV Series - 64.5mm Dimension A, 19.1mm Hex h
SKU:SOC-0bf38b
Ensure precision flow control with the SOCV Series One-Piece Check Valve. Max pressure 3000 psig, premium materials, tested performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
One-Piece Check Valve SOCV Series - 64.5mm Dimension A, 19.1mm Hex h
$129.99
Quantity: 1
Claim Your Seller Account
One-Piece Check Valve SOCV Series - 64.5mm Dimension A, 19.1mm Hex h
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

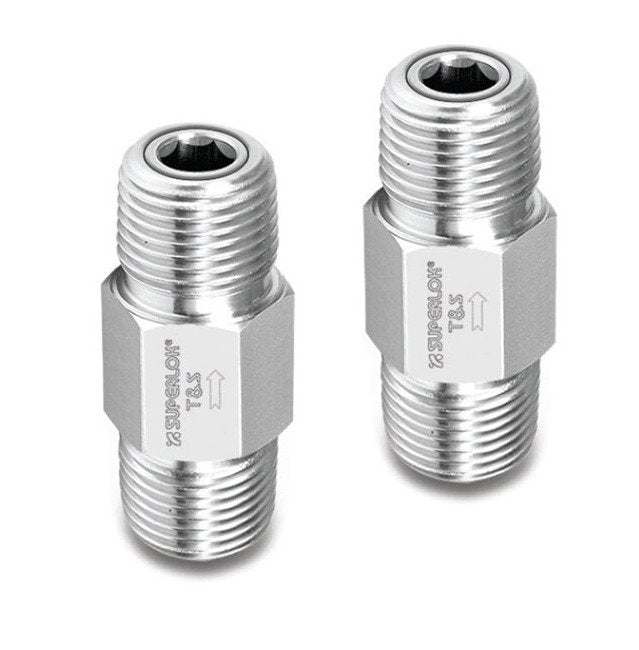

The SOCV Series One-Piece Check Valve offers reliable performance with a maximum working pressure of 3000 psig. This valve features a fluorocarbon O-Ring temperature rating of -10 to 375 ºF, ensuring durability and efficiency. With 316 stainless steel body and tested cracking pressure at the factory, it meets stringent quality standards for both consumer and institutional buyers.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

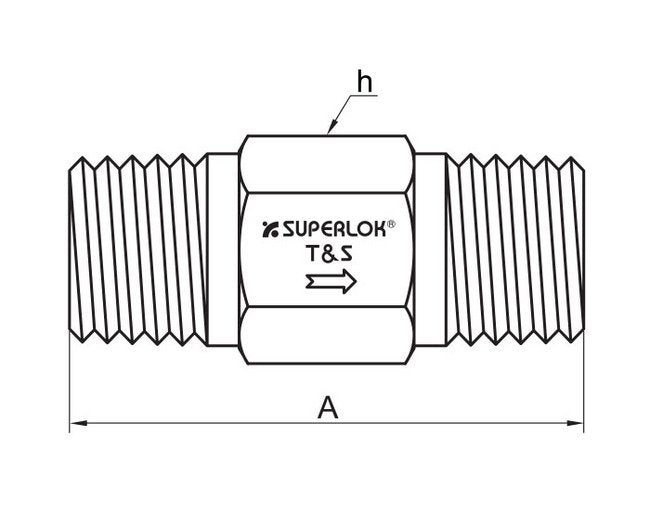

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
64.5 mm
Technical Specs Flow Coefficients Cv
0.35
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
19.1 mm | 3/4 in
Technical Specs Inlet End Connections
1/4 in. Female International Organization for Standardization (ISO)
Technical Specs Maximum Back Pressure At 70 Degree Fahrenheit F
3000 psig | 206 bar
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Nominal Cracking Pressure
1/3 psig | 1 psig | 10 psig | 25 psig | 0.02 bar | 0.06 bar | 0.68 bar | 1.7 bar
Technical Specs Outlet End Connections
1/4 Female International Organization for Standardization (ISO)
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
