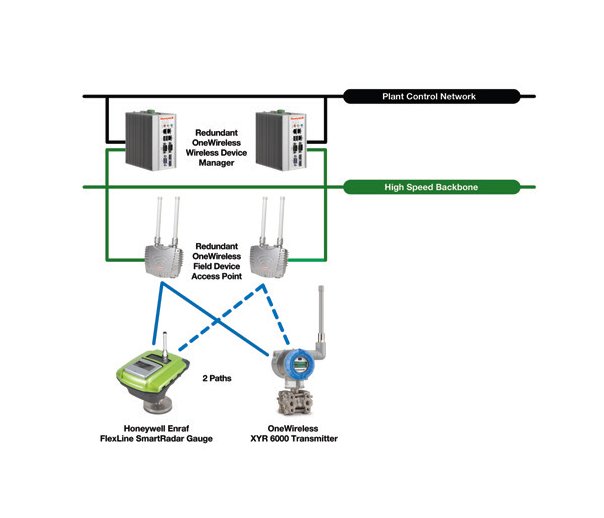

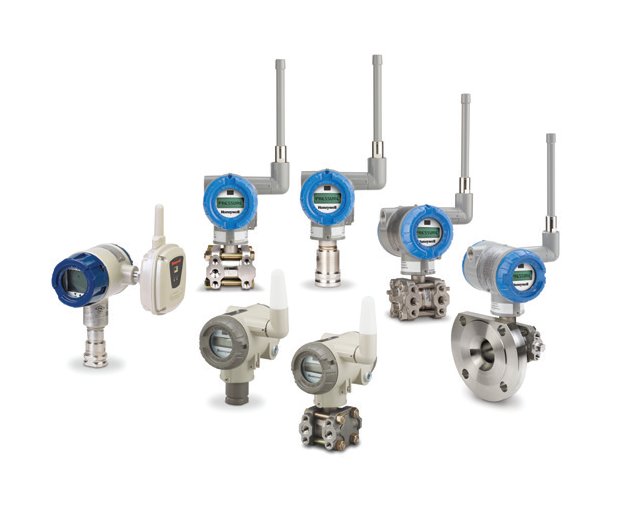

OneWireless™ XYR 6000 Transmitters provide highly accurate pressure, temperature, analog input, valve position, digital input measurements or a digital output, and transmit the measured value wirelessly using the 2.4 GHz ISM band and ISA100 Wireless open protocol to a Honeywell access point. XYR 6000 transmitters provide the ability to obtain data from remote and hazardous measurement locations without the need to run wires.
Product Specifications
Features
Attributes and benefits include:Single plant wide wireless infrastructure for lowest total cost of ownershipOpen, standards based system providing choice of product and supplierBest integrated industrial security available todayExtremely reliable mesh system-field proven for best uptimeFlexible and scalable for designing the network that best fits the application need
Onewireless Adapter
The OneWireless™ Adapter (OWA) transforms a HART device into an ISA100 Wireless compliant wireless device, transmitting this valuable information back to a host system wirelessly. The OWA provides access to: 4 HART dynamic variables (PV, SV, TV, FV), multivariable data, calibration and diagnostic information, device configuration parameters.
Technical Specs Absolute Pressure Range
500 psi | 35 bar
Technical Specs Accuracy
±0.10 %
Technical Specs Analog Input Current
0 to 20 mA | 4 to 20 mA
Technical Specs Analog Input Voltage
0 to 5 V | 1 to 5 V
Technical Specs Battery Life
0 to 10 y
Technical Specs Contact Type
Dry Contact Only
Technical Specs Diagnostics
Extensive Device Status Capability
Technical Specs Differential Pressure Range
10 in·H2O | 400 in·H2O | 100 psi | 3,000 psi | 25 mbar | 1,000 mbar | 7,000 mbar | 210,000 mbar
Technical Specs Directional Antennas Connection
14 dBI
Technical Specs Discrete Inputs
No Voltage or Current
Technical Specs Dual Head Meter Body Gauge Pressure Range
500 psi | 3,000 psi
Technical Specs Enclosures
NEMA Type 4X, IP 66/67 and NEMA 8 (Explosion Proof), Stainless Steel Housing Available
Technical Specs Flange Mount Pressure Range
400 in·H2O | 1,000 mbar
Technical Specs Hazardous Approvals
ATmosphere EXplosible (ATEX) | Canadian Standards Association (CSA) | Factory Mutual (FM) | International Electrotechnical Commission Explosive (IECEx) | National Institute of Metrology, Standardization, and Industrial Quality (InMetro) | Safety Assessment Excellence (SAEx)
Technical Specs Integral Connection
4 dBI
Technical Specs In Line Meter Body Gauge Pressure Range
50 psi | 500 psi | 3,000 psi | 6,000 psi | 10,000 psi | 3.5 bar | 35 bar | 210 bar | 420 bar | 690 bar
Technical Specs Liquid Crystal Display Lcd
Local, Alpha Numeric, 8 Segment, Always On
Technical Specs Maximum Impedance
1 kΩ
Technical Specs Number Of Inputs
3
Technical Specs Omni Directional Connection
8 dBI
Technical Specs Operating Temperature
-40 to 85 ºC | 40 to 185 ºF
Technical Specs Position
Provides Position Monitoring for Items Like Linear Distances or Valve Position
Technical Specs Radio Frequency
2.4 GHz, License Free, Direct Sequence Spread Spectrum (DSSS) Technology; ISA100.11a Compliant
Technical Specs Range
350 m (1150 ft) with Integral 4 dBi Antenna
Technical Specs Remote Probe
Integral and Remote Probe Configurations Available
Technical Specs Remote Seal Absolute Pressure Range
500 psi | 35 bar
Technical Specs Remote Seal Differential Pressure Range
100 psi | 7,000 bar
Technical Specs Remote Seal Gauge Pressure Range
3,000 psi | 210 bar
Technical Specs Remote Seal Pressure Range
400 in·H2O | 1,000 mbar
Technical Specs Sensors Radio Power
125 to 400 mW
Technical Specs Software
Local and Software Configurable
Technical Specs Temperaturediscrete Input Di
Temperature + DI; 3 TC Max, 2 RTD Max, 3 DIs Max
Technical Specs Transmitter Power
2 "D" size 3.6 V Li - Non Rechargeable Batteries
Technical Specs Wireless Solutions
OneWireless™ Compatible and ISA100 Compliant
