Opticonx BOKP Series 8 Fiber, 900 Micrometer (µm) Buffered Fiber, and 2.0 Micrometer (µm) Tubing Diameter Breakout Kit
Opticonx BOKP Series 8 Fiber, 900 Micrometer (µm) Buffered Fiber, and 2.0 Micrometer (µm) Tubing Diameter Breakout Kit
SKU:BRE-8a67c8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Opticonx BOKP Series 8 Fiber, 900 Micrometer (µm) Buffered Fiber, and 2.0 Micrometer (µm) Tubing Diameter Breakout Kit
$49.99
Quantity: 1
Claim Your Seller Account
Opticonx BOKP Series 8 Fiber, 900 Micrometer (µm) Buffered Fiber, and 2.0 Micrometer (µm) Tubing Diameter Breakout Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

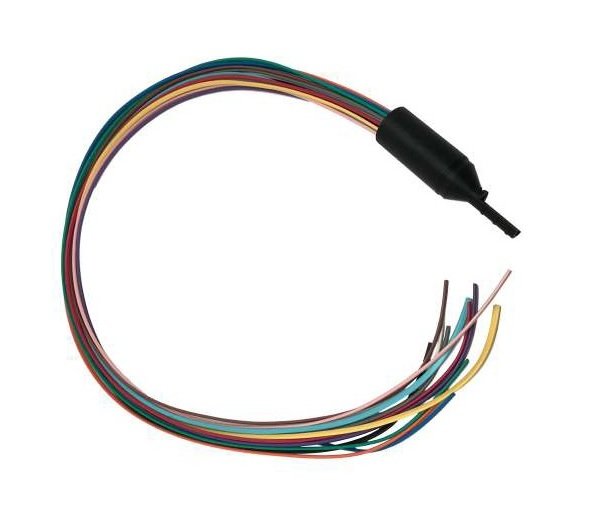

Opticonx BOKP Series Breakout Kits are designed to provide a 2.0 mm or 3.0 mm direct termination solution for cable containing 900 μm buffered fiber.Opticonx BOKP Series Breakout Kits are designed to quickly and easily breakout and directly terminate up to 24 900 μm fibers with 2.0 mm color coded tubing or 12 900 μm fibers with 3.0 mm color coded tubing. Each of the 900 μm buffered fibers are routed into individual color coded tubes via protective housing for identification, protection, fiber management and direct termination with industry standard LC, SC, ST and other industry standard connectors.
Product Specifications
Applications
Fiber identification, management/routing, protection and direct termination of the individual 900 μm buffered fibers in 2.0 mm or 3.0 mm tubing.

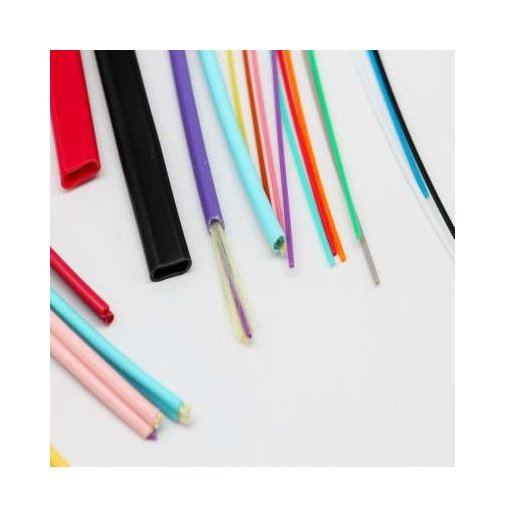

Breakoutfurcation Tubing For Fiber Optic Cable
Any Size, Material or Color900 µm, 2.0 mm, 3.0 mm, Ribbon and CustomPVC, Hytrel, PVDF, PP, LSZH, RoHS or choice of material900 µm, 2.0 mm & 3.0 mm breakout tubing for 250 µm & 900 µm fiber Made to customer’s design specificationsYour company name, phone number & website printed on tubingHarsh environment - any environment - tubing applicationsRainbow of colors available on any tubing12 fiber ribbon breakout tubingHigh & Low Temperature rated tubingKevlar reinforced tubing designsSingle wall, dual wall, multi wall tubingFactory direct pricingQuick turnaround from tubing design to delivery of tubing
Features And Benefits
No special tools requiredEasily identified color coded tubingFits any manufacturer's cableInstalls in minutesProtects and manages bare fiberTerminates any/all industry standard connectors

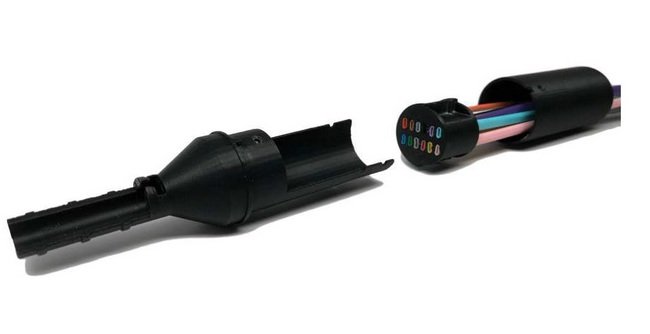

Kit Components
Cable body, breakout body, cable cover, screws and adhesive shrink tubingStandard tubing length is 36". Custom lengths available.
Note
Made in the USA.
Other Kits Opticonx Bokl Series Breakout Kits
BOKL Series Breakout Kits are designed to provide a 2.0 mm or 3.0 mm direct termination solution for cable containing 250 µm buffered fiber.
Other Kits Opticonx Splitter Kits
Splitter Kits are designed to provide a 900 μm direct termination solution for loose tube, micro distribution and ribbon fiber cables.
Other Kits Opticonx Ubk Series Breakout Kits
UBK Series Breakout Kits are designed to provide a direct termination solution for high fiber count bundled unitube cables and MTP/MPO terminations.
Other Kits Opticonx Ubr Series Breakout Kits
UBR Series Breakout Kits are designed to provide a direct termination solution for high fiber count ribbon unitube cables and MTP/MPO terminations.
Specifications Body Length
114.33 mm | 4.5 in
Specifications Body Width
29.21 mm | 1.15 in
Specifications Cover Length
57.4 mm | 2.26 in
Specifications Cover Width
29.21 mm | 1.15 in
Specifications Number Of Fiber
8
Specifications Terminal Length
19.05 mm | 0.75 in
Specifications Terminal Width
23.88 mm | 0.94 in
Specifications Tubing Diameter
2.0 mm
