Opticonx UBR Series 24 Fiber Ribbon Unitube Cable Breakout Kit
$49.99
Quantity: 1
Claim Your Seller Account
Opticonx UBR Series 24 Fiber Ribbon Unitube Cable Breakout Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

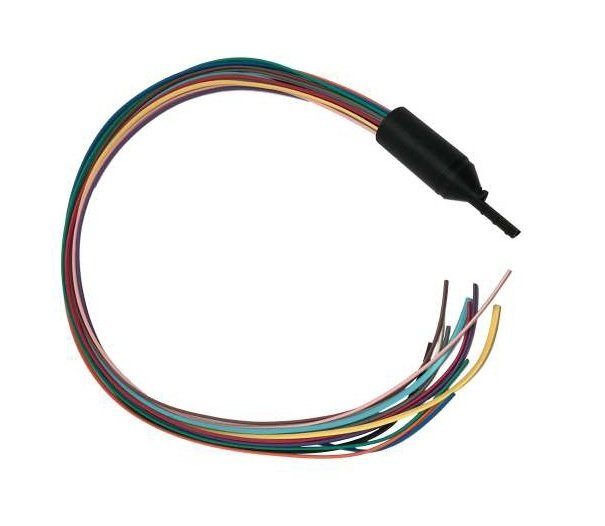

Opticonx UBR Series Breakout Kits are designed to provide a direct termination solution for high fiber count ribbon unitube cables and MTP/MPO terminations. Opticonx UBR Series Breakout Kits can also route up to 12 fiber ribbons into individual color coded tubes via a protective housing. The color coded, protected fiber ribbons can then be routed to splice trays or directly terminated with individual ST, SC, LC connectors when used with an Opticonx SPKR Series Ribbon Splitter Kit. The kits work with any manufacturer’s cable with 1 to 12 fiber ribbons per tube.
Product Specifications
Applications
MTP/MPO direct termination solution for multi-ribbon unitube cableDirect termination solution for ST, SC and LC connectors when used with Opticonx SPKR Series Ribbon SplitterFiber identification, management/routing and protection for fusion and mechanical splicing

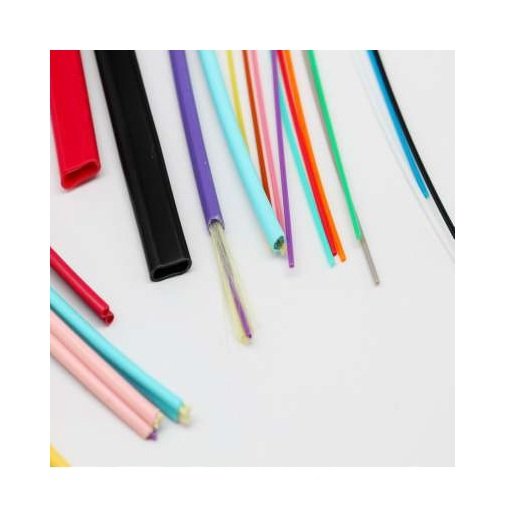

Breakoutfurcation Tubing For Fiber Optic Cable
Any Size, Material or Color900 μm, 2.0 mm, 3.0 mm, Ribbon and CustomPVC, Hytrel, PVDF, PP, LSZH, RoHS or choice of material900 μm, 2.0 mm & 3.0 mm breakout tubing for 250 μm & 900 μm fiberMade to customer’s design specificationsYour company name, phone number & website printed on tubingHarsh environment - any environment - tubing applicationsRainbow of colors available on any tubing12 fiber ribbon breakout tubingHigh & Low Temperature rated tubingKevlar reinforced tubing designsSingle wall, dual wall, multi wall tubingFactory direct pricingQuick turnaround from tubing design to delivery of tubing
Features And Benefits
No special tools requiredEasily identified color coded tubingFits any manufacturer's cableInstalls in minutesProtects and manages bare fiber
Kit Components
Cable body, breakout body, cable cover, screws and adhesive shrink tubingStandard tubing length is 36". Custom lengths available
Note
Made in the USA.
Other Kits Opticonx Bokl Series Breakout Kits
BOKL Series Breakout Kits are designed to provide a 2.0 mm or 3.0 mm direct termination solution for cable containing 900 µm buffered fiber.
Other Kits Opticonx Bokp Series Breakout Kits
BOKP Series Breakout Kits are designed to provide a direct termination solution for high fiber count ribbon unitube cables and MTP/MPO terminations.
Other Kits Opticonx Splitter Kits
Splitter Kits are designed to provide a 900 μm direct termination solution for loose tube, micro distribution and ribbon fiber cables
Other Kits Opticonx Ubk Series Breakout Kits
UBK Series Breakout Kits are designed to provide a direct termination solution for high fiber count bundled unitube cables and MTP/MPO terminations.
Specifications Body Length
114.33 mm | 4.5 in
Specifications Body Width
29.21 mm | 1.15 in
Specifications Cover Length
57.4 mm | 2.26 in
Specifications Cover Width
29.21 mm | 1.15 in
Specifications Number Of Fiber
24
Specifications Terminal Length
19.05 mm | 0.94 in
Specifications Terminal Width
23.88 mm | 0.75 in
